Dupla Ocean Sump OS 500

Ocean Sump OS 500 5-chamber filter system Product details Ocean Sump 5-chamber filter systems have several innovative features that make connection, operation, maintenance and cleaning considerably easier.

Ocean Sump OS 500 5-chamber filter system

Product details

Ocean Sump 5-chamber filter systems have various innovative features that make connection, operation, maintenance and cleaning considerably easier. Depending on the model, all Ocean Sump filter systems are equipped with one or two filter containers with matching mesh bags, in which various filter materials, such as zeolite or filter carbon, can be placed. Electrode holders and connection cables including hose connections for dosing solutions are also available for all models. With the help of a water level regulator, the optimum water level in the skimmer chamber can be easily adjusted to the specific skimmer (protein skimmer) in use. This optimises the performance of the skimmer. All models are also equipped with a refill container and can therefore easily be equipped with an automatic refill system. Depending on the model, the filter systems have an inlet of 32 mm or 50 mm. Ocean Sump filter systems are available in three different sizes.

Ocean Sump 5-chamber filter system

• Easy installation
• Connection cable included
• Skimmer chamber with adjustable water level
• Electrode holders included
• Connection cables for dosing pumps included
• Refill container included
• Dimensions OS200: 49.3 x 35 x 40 cm
• Dimensions OS500: 76.6 x 40 x 40 cm
• Dimensions OS800: 90 x 45 x 40 cm



Scope of delivery:

• 1 x Ocean Catch Tray
• 3 x lids
• 2 x filter containers
• 2 x net bags
• 1 x connection cables (4 pieces) for dosing systems
• 2 x inlet connection 32 mm
• 1 x Instruction manual

Design:

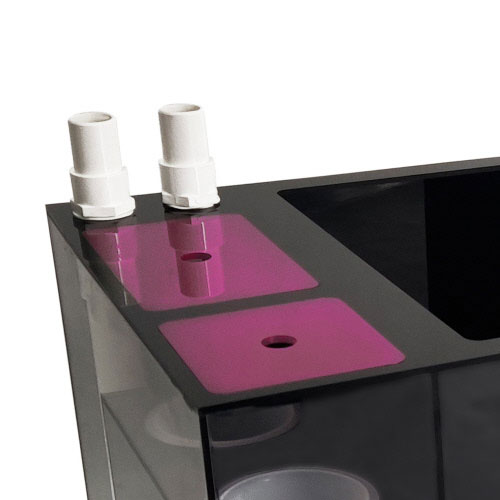

• A. Connection cable 32 mm / 50 mm
• B. Filter cover
• C. Pump room

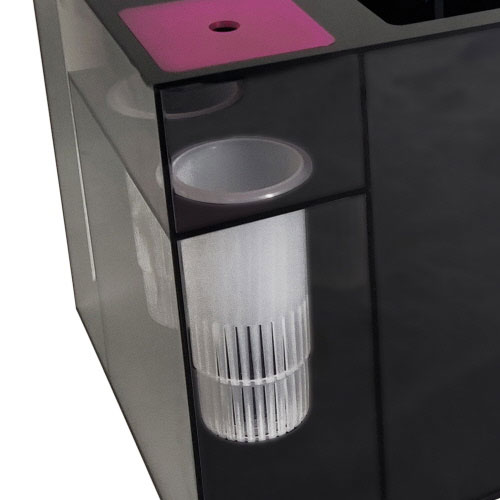

• D. Filter container
• E. Pre-filter chamber
• F. Water level controller
• G. Hose connections for dosing systems
• H. Refill container
• I. Skimmer chamber
• J. Electrode holder

Scope of delivery:

• 1 x Ocean Catch Tray
• 3 x Lids
• 2 x Filter containers
• 2 x Net bags
• 1 x Connection cables (4 pieces) for dosing systems
• 2 x Inlet connection 32 mm
• 1 x Instruction manual

Dimensions of the individual filter systems:

Room OS500

• 1 12,5x12 cm
• 2 12.5x26 cm
• 3 32x39cm
• 4 29,5x19 cm
• 5 29,5x19 cm

Technical data:

• Connection cable 2 x 32 mm
• Dimensions 76.6 x 40 x 40 cm
• Total volume 120 l
• Refill container volume 21 l
• Aquarium size up to 500 l
• Basic dimensions of the skimmer chamber 32 x 39 cm
• Maximum water level 25 cm
• Filter container + mesh bag 2 pcs.
