Royal Exclusiv Bubble King Supermarin 100 with Red Dragon

Bubble King® Supermarin 100 RDX with Degassing Chamber – for aquariums from 75 to 250 liters The Bubble King® Supermarin 100 RDX with Degassing Chamber is an advanced internal protein skimmer for marine aquariums...

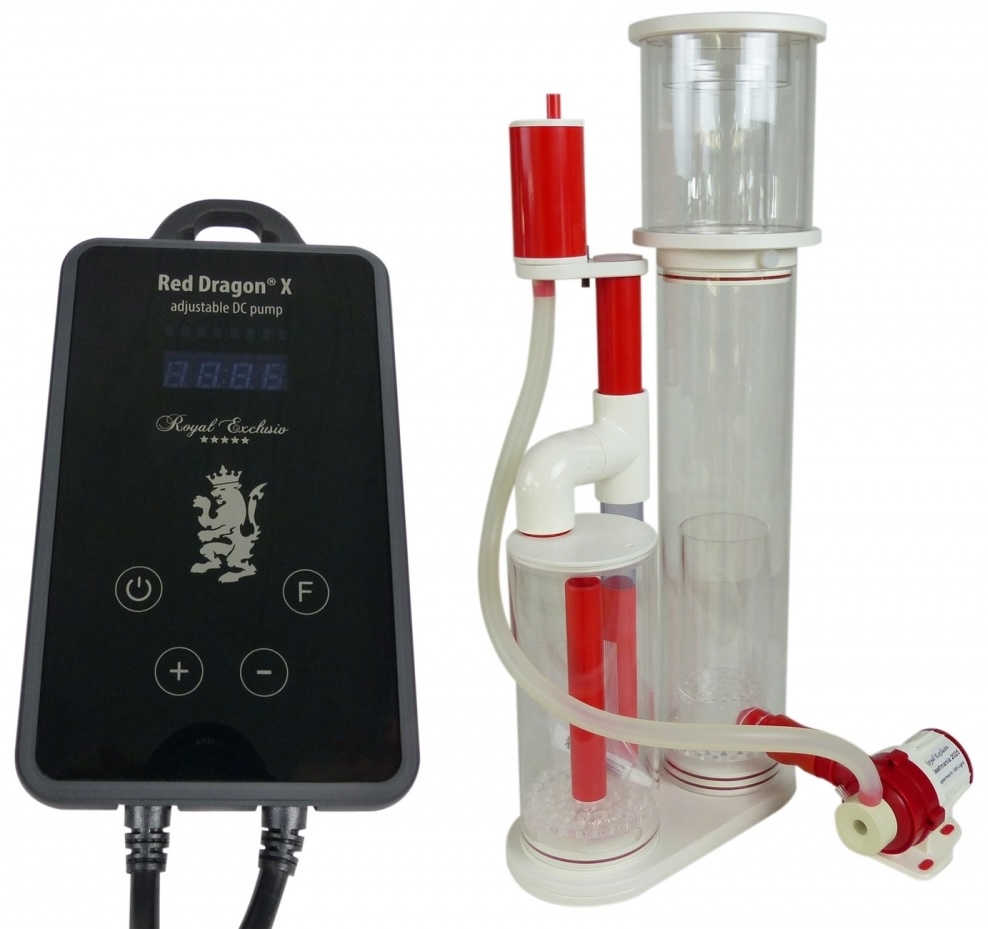

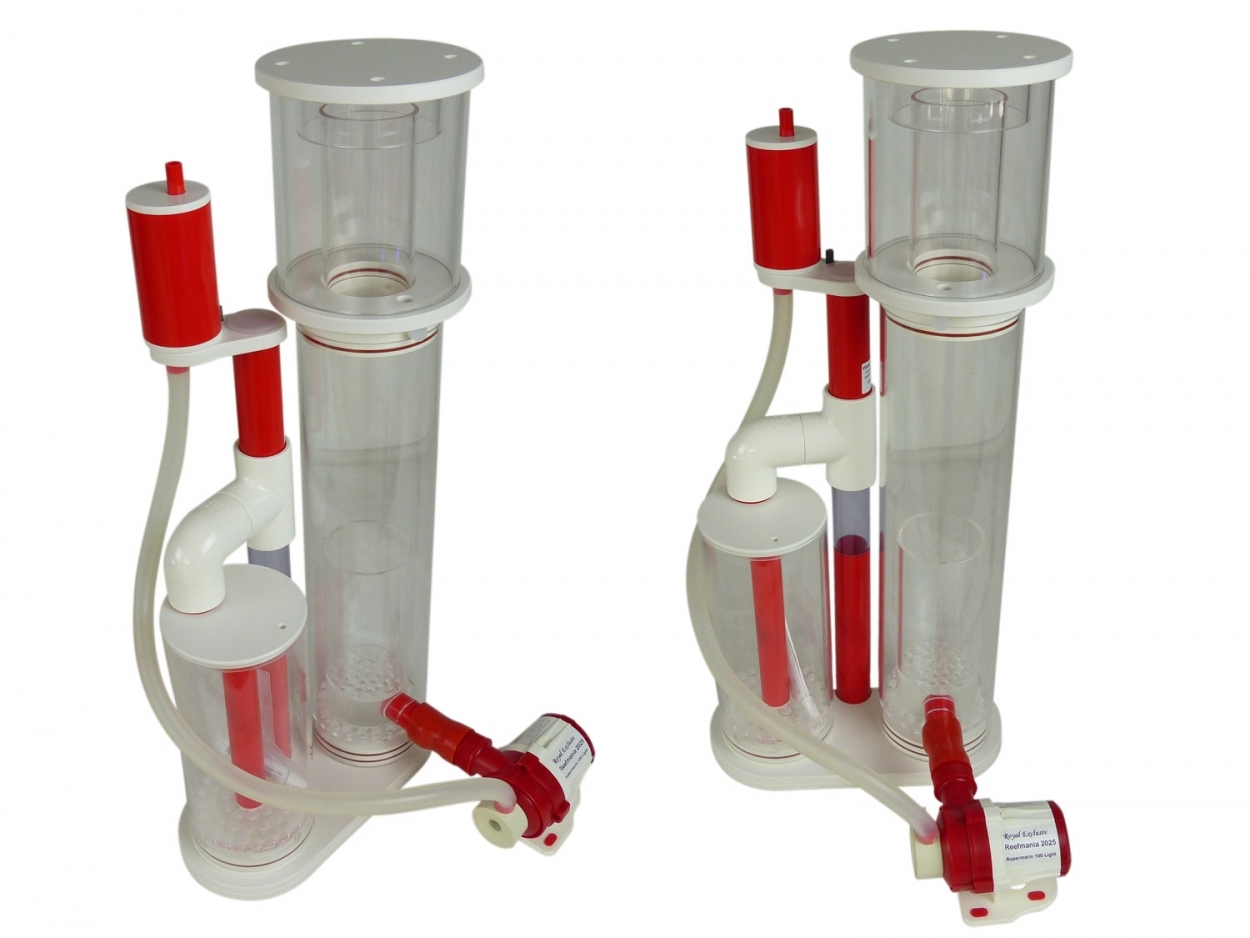

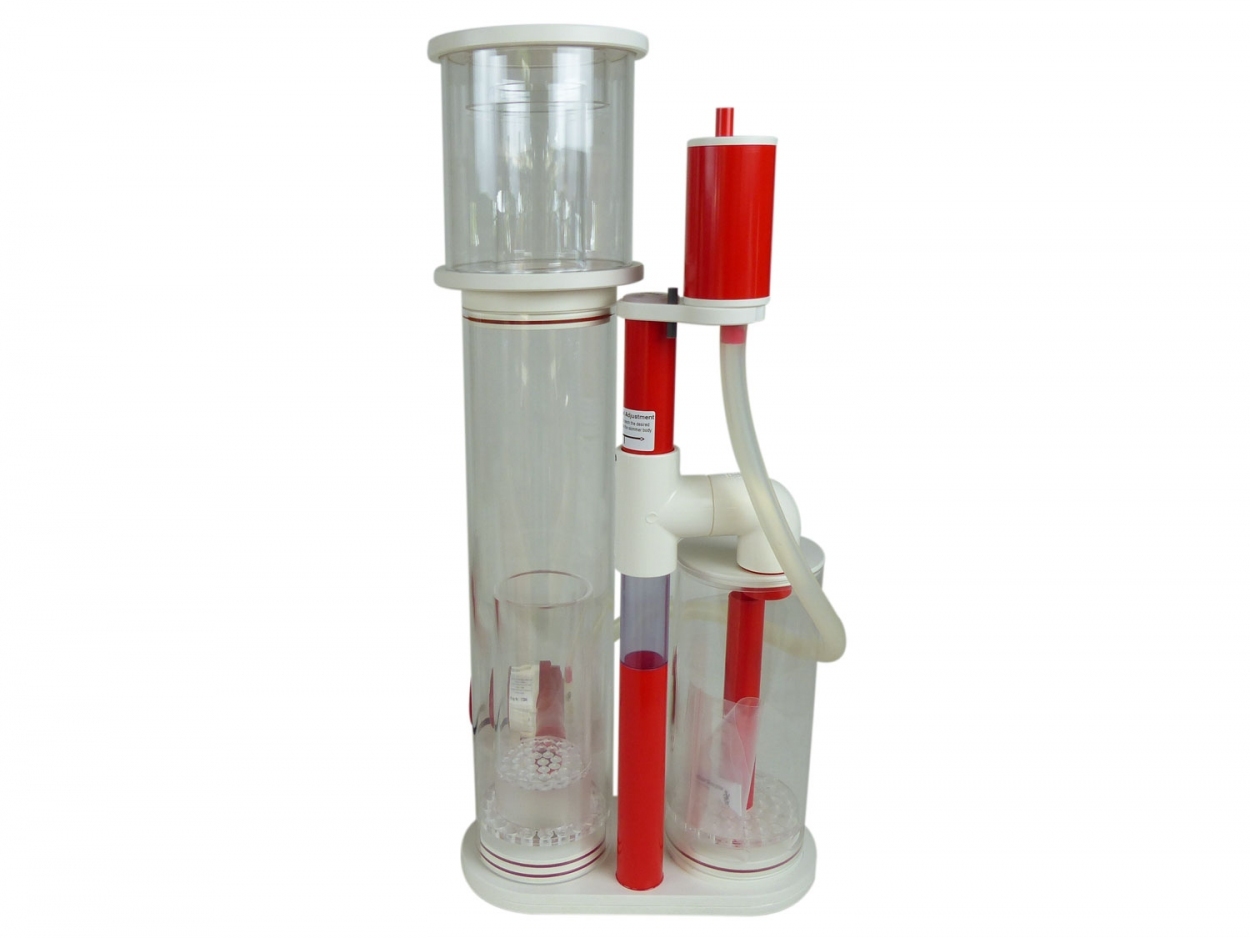

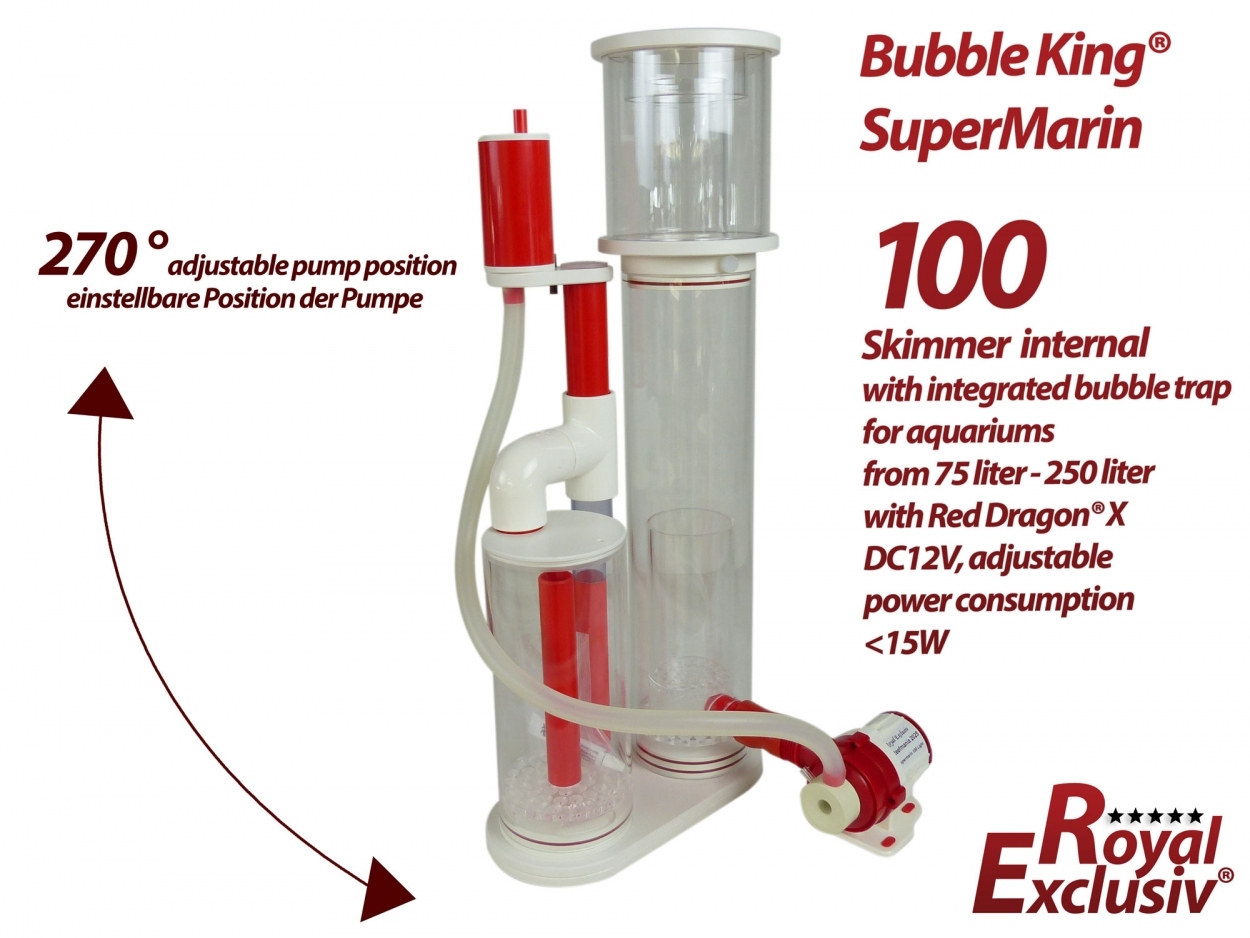

Bubble King® Supermarin 100 RDX with degassing chamber – for aquariums from 75 to 250 liters

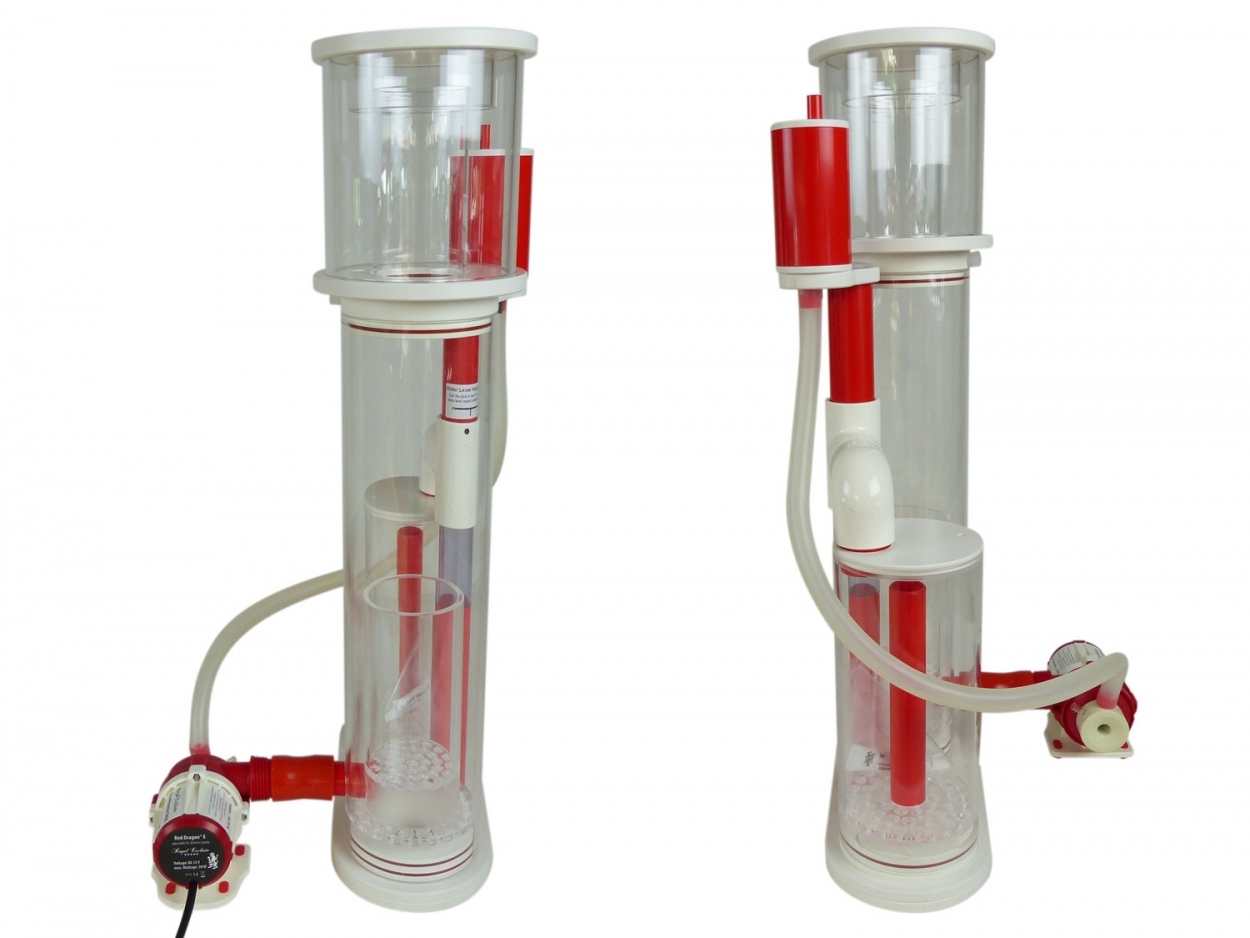

The Bubble King® Supermarin 100 RDX with degassing chamber is an advanced internal protein skimmer for marine aquariums from 75 to 250 liters (20–66 gallons). Thanks to the integrated degassing chamber, microbubbles are effectively removed, resulting in crystal-clear water and a more stable aquarium system.

Advanced skimming with Red Dragon® X DC technology

This skimmer is equipped with the Red Dragon® X 3000 DC skimmer pump (12V), a brushless DC pump with extremely quiet operation. The pump is adjustable in 16 steps and uses sine wave technology for maximum efficiency and minimum vibrations.

• Adjustable air intake from 200 to 600 l/h
• Water flow rate of approx. 400 to 1,500 l/h
• Extremely quiet operation thanks to Sine Wave technology

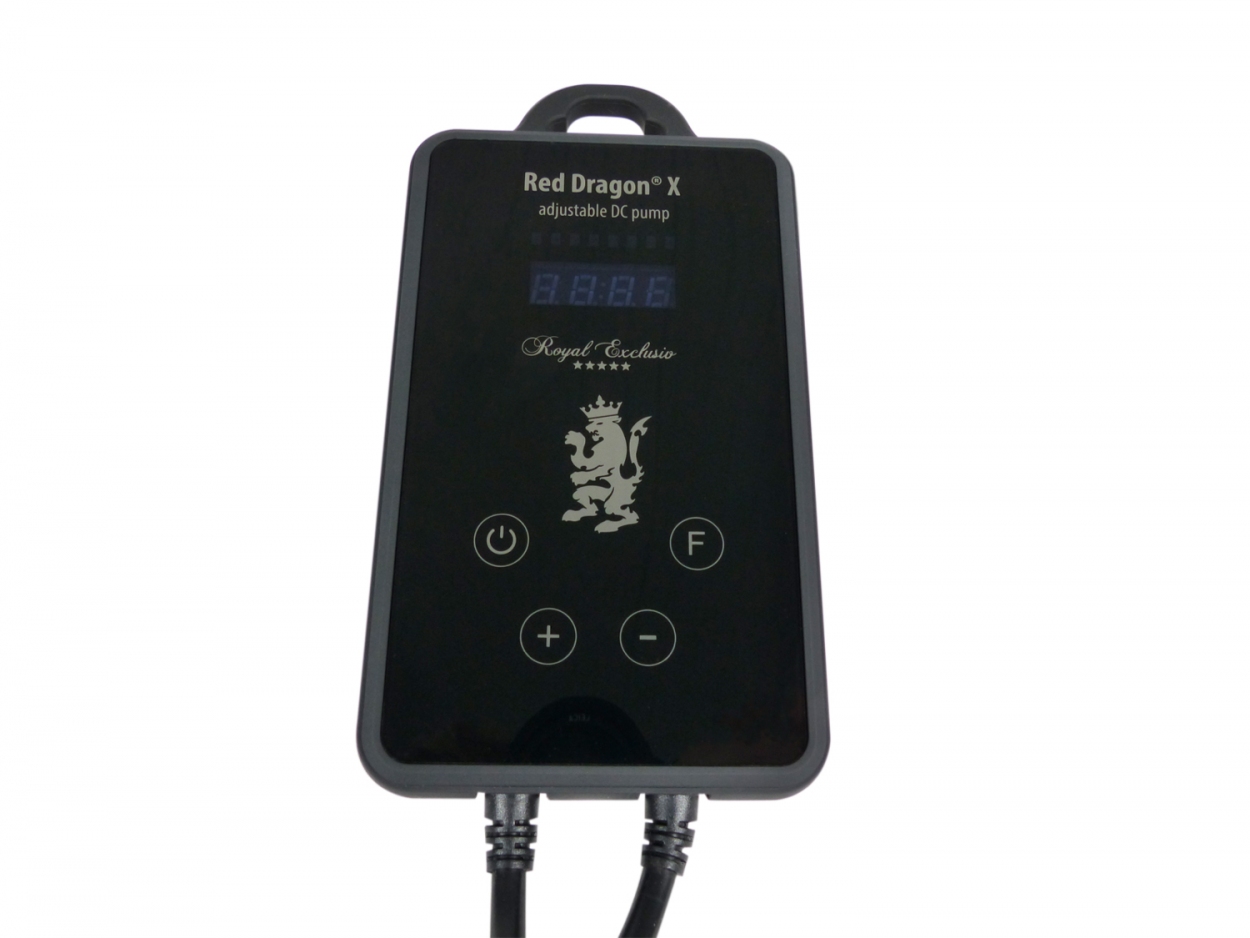

• Precise control via touchscreen display

Hard facts

• Suitable for aquariums from 75 to 250 liters (20–66 gal)
• Pump: Red Dragon®
• Max. air intake: 600 l/h
• Max. water flow: 1,500 l/h
• Maximum power: 20 Watts
• Base plate: 26 × 13 cm
• Total height: approx. 58 cm

Reference setting (test bench)

The settings below give a good idea of performance under normal use:

• Sump water level: approx. 18 cm
• Pump setting: approx. 2,400 rpm
• Air intake: 600 l/h
• Power consumption: approx. 13.7 watts

Installation and water level

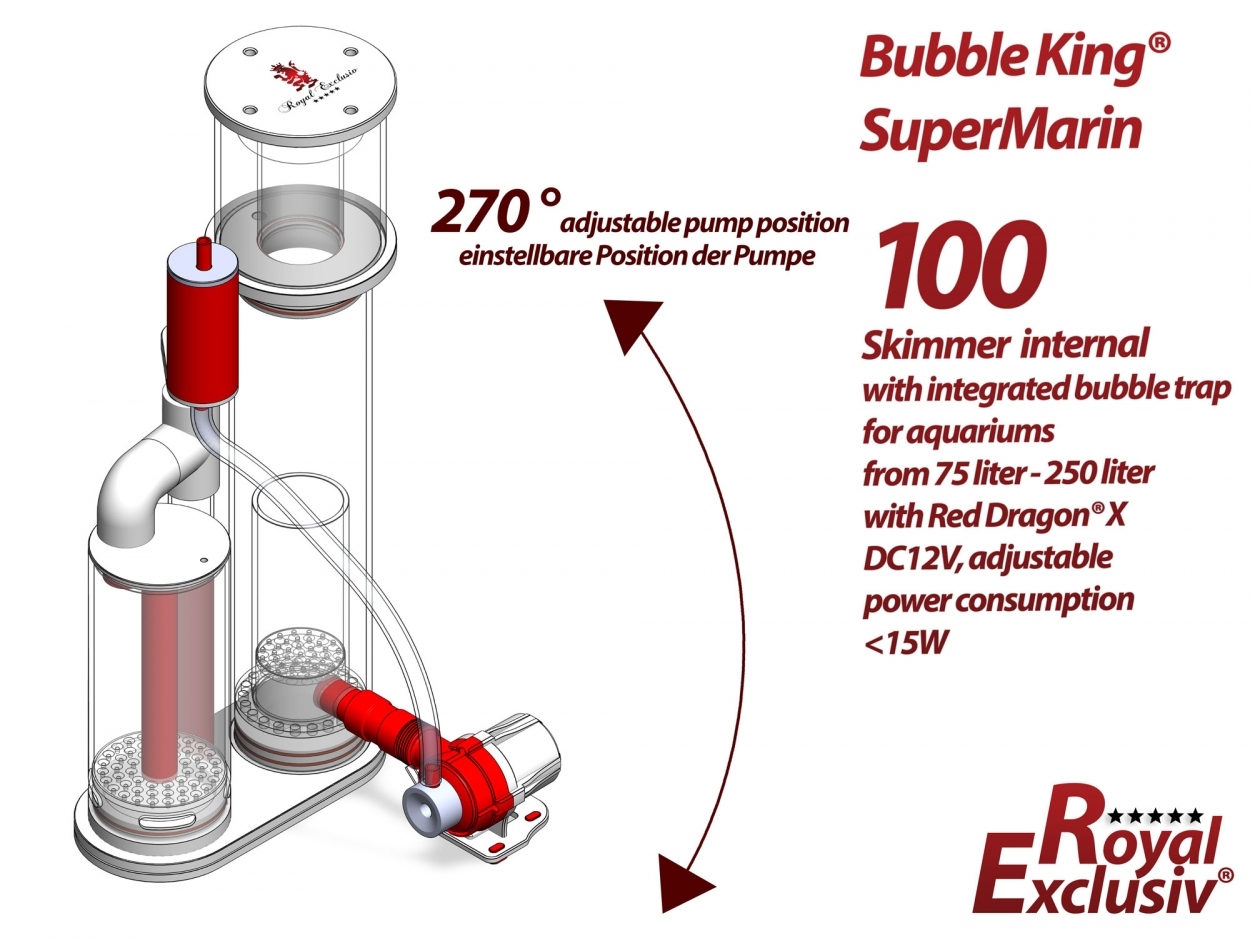

The Bubble King® Supermarin 100 RDX with degassing chamber is suitable for installation in a sump with a wide range of adjustable water levels. The degassing chamber reduces microbubbles and increases user comfort.

• Recommended water level: 150–250 mm
• Height suction side: center 45 mm

Technical data Red Dragon® X 3000 DC pump

• Brushless DC pump with needle wheel
• Adjustable in 16 steps
• Power range: approx. 10–20 watts
• Operating voltage: 100–240V, 50/60 Hz (12V technology)
• Pump protection class: IP68
• Protection class controller: IP66
• Pump weight (without controller): approx. 0.5 kg

Dimensions and weight

• Skimmer weight (incl. pump): approx. 5.75 kg
• Skimmer dimensions (incl. pump): 380 mm wide × 160 mm deep × approx. 580 mm high

Construction and sound insulation

• Seawater-resistant M4 titanium screws (grade 2)
• Parabolic rubber feet for acoustic decoupling
• Compact design to prevent vibrations and oscillations
• Low risk of limescale deposits and easy maintenance

Operation and safety

• High-quality touchscreen display with feeding function
• Protection against dry running
• Overheating protection
• Overvoltage and blocking protection

Contents of the delivery

• Red Dragon® X 3000 DC pump with 2 m power cable
• Controller with 1.5 m power cable
• Power adapter with 1.5 m cable and rubber connector
• Nozzle with air and ozone connection
• Manual (German / English)

Summary

The Bubble King® Supermarin 100 RDX with degassing chamber is the ideal protein skimmer for aquarists demanding maximum silence, control and water quality. The combination of the Red Dragon® X DC pump, high-quality materials and the integrated degassing chamber makes this model a top choice for marine aquariums up to 250 litres.
