Royal Exclusiv Bubble King Supermarin 100 with Red Dragon

Bubble King® Supermarin 100 RDX – for aquariums from 75 to 250 liters The Bubble King® Supermarin 100 RDX is a compact but highly advanced internal protein skimmer for marine aquariums from 75 to 25...

Bubble King® Supermarin 100 RDX – for aquariums from 75 to 250 liters

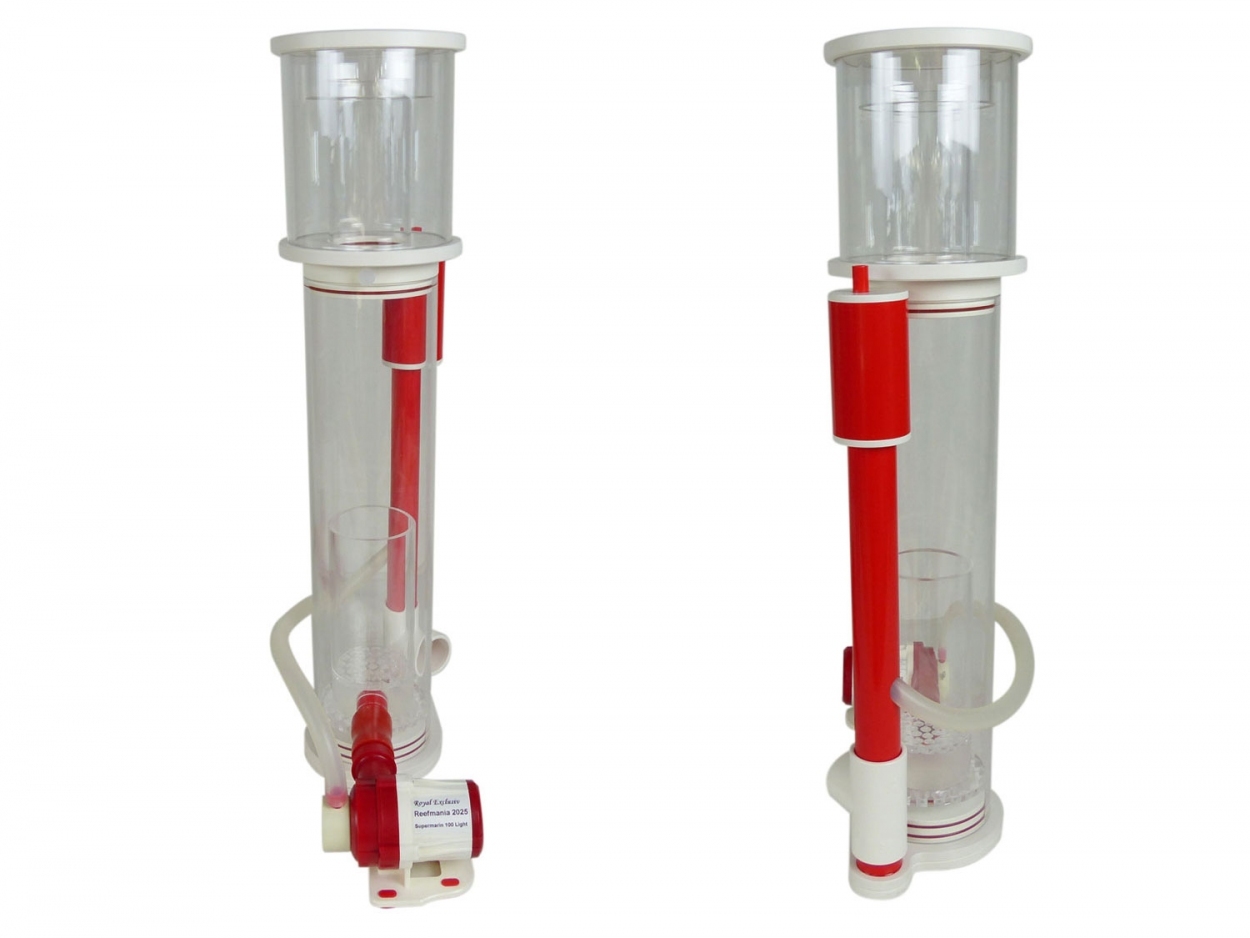

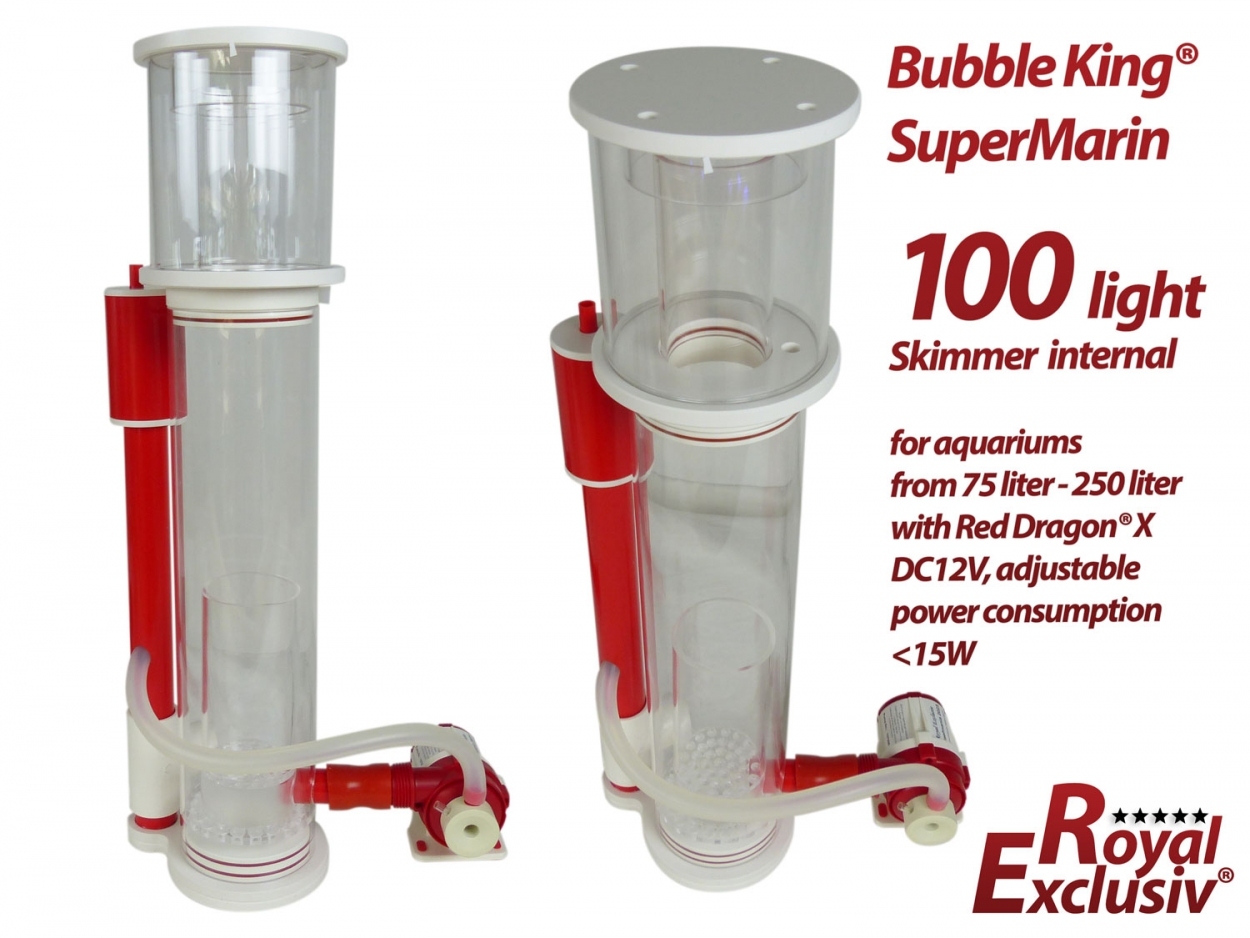

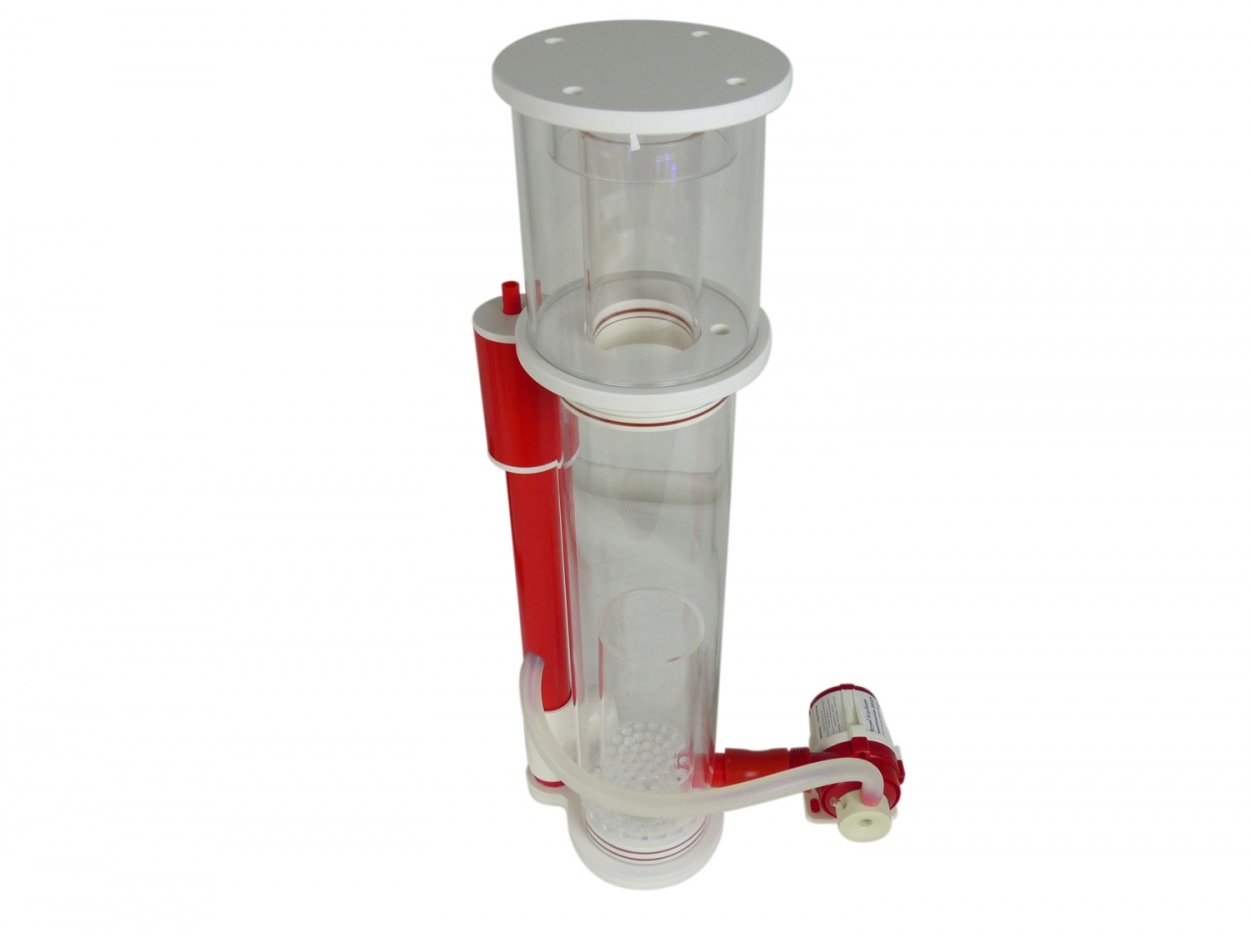

The Bubble King® Supermarin 100 RDX is a compact yet highly advanced internal protein skimmer for marine aquariums from 75 to 250 litres. This model combines high-quality materials with the latest Red Dragon® X DC technology and offers exceptional performance with very low energy consumption and noise levels.

Powerful and whisper-quiet Red Dragon® X DC technology

The Supermarin 100 RDX is equipped with the Red Dragon® X 3000 DC skimmer pump (12V). This brushless DC pump is infinitely variable in 16 steps and delivers extremely stable foam production. Thanks to the sine wave technology, the pump runs extremely quietly and vibration-free.

• Adjustable air intake from 200 to 600 l/h
• Water flow rate of approx. 400 to 1,500 l/h
• Power setting from approx. 10 to 20 Watts
• Display with engine speed (RPM)

Hard facts

• Suitable for aquariums from 75 to 250 liters
• Pump: Red Dragon®
• Max. air intake: 600 l/h
• Max. water flow: 1,500 l/h
• Maximum power: 20 Watts
• Base plate: 16 × 13 cm
• Total height: approx. 58 cm

Reference setting (test bench)

For optimal performance, the Supermarin 100 RDX has been tested under the following conditions:

• Sump water level: approx. 18 cm
• Pump setting: approx. 2,400 rpm
• Air intake: 600 l/h
• Power consumption: approx. 13.7 watts

Installation and water level

The skimmer is suitable for installation in a sump with a wide range of adjustable water levels. This makes the Supermarin 100 RDX flexible and suitable for various sump designs.

• Recommended water level: 150–250 mm
• Height suction side: center 45 mm

Technical data Red Dragon® X 3000 DC pump

• Brushless DC pump with needle wheel
• Adjustable in 16 steps
• Power range: approx. 10–20 watts
• Operating voltage: 100–240V, 50/60 Hz (12V technology)
• Pump protection class: IP68
• Protection class controller: IP66
• Pump weight (without controller): approx. 0.5 kg

Dimensions

• Pump dimensions: 80 mm wide × 130 mm long (120 mm without inlet protection) × approx. 110 mm high (135 mm with connection)
• Controller dimensions: 20mm wide × 90mm long × approx. 170mm high
• Skimmer dimensions (incl. pump): 260 mm wide × 160 mm deep × approx. 580 mm high

Construction and sound insulation

• Seawater-resistant M4 titanium screws (grade 2)
• Parabolic rubber feet for acoustic decoupling
• Compact design against vibrations and oscillations
• Low risk of limescale deposits and easy maintenance

Operation and safety

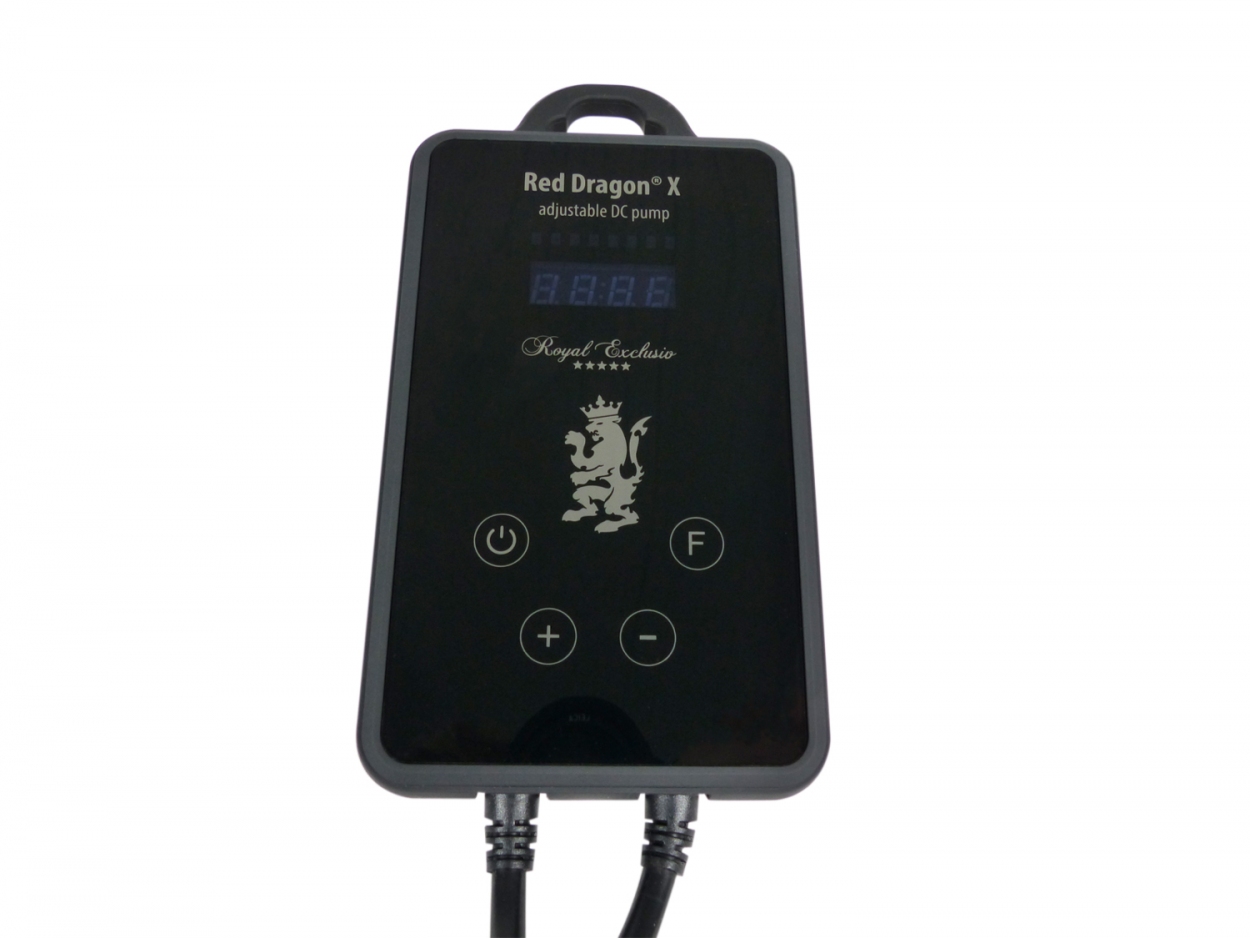

• High-quality touchscreen display
• Feeding function
• Protection against dry running
• Protection against overheating, overvoltage and blocking

Contents of the delivery

• Red Dragon® X 3000 DC pump with 2 m power cable
• Controller with 1.5 m power cable
• Power adapter with 1.5 m cable and rubber connector
• Nozzle with air and ozone connection
• Manual (German / English)

Summary

The Bubble King® Supermarin 100 RDX is the ideal protein skimmer for smaller to medium-sized marine aquariums where silence, precision and efficiency are key. Thanks to its advanced Red Dragon® X DC technology, compact design and high-quality finish, this skimmer offers top-level performance in the segment up to 250 litres.
