Royal Exclusiv Bubble King Double Cone 180 + BK DC 24V

Bubble King® Double Cone 180 BK DC 24V – for aquariums up to 500 liters The Bubble King® Double Cone 180 BK DC 24V is a high-performance protein skimmer, designed for marine aquariums up to 500 liters. This model...

Bubble King® Double Cone 180 BK DC 24V – for aquariums up to 500 liters

The Bubble King® Double Cone 180 BK DC 24V is a high-performance protein skimmer, designed for marine aquariums up to 500 liters. This model combines a compact design with powerful performance and is known for its quiet operation, stability, and highly efficient skimming.

Powerful performance and efficient skimming

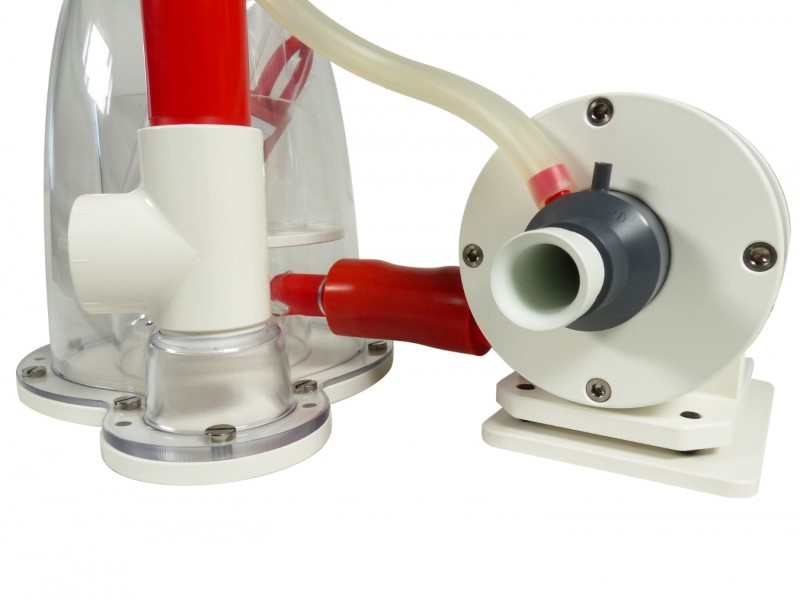

This skimmer is equipped with a Bubble King® 2500 DC skimmer pump (24V) with a needle wheel. This creates a fine mixture of air and water, resulting in a stable foam and effective removal of organic waste.

• Maximum air intake up to 2,500 l/h
• Water flow up to 7,500 l/h
• Adjustable DC pump for precise adjustment
• Very quiet and energy-efficient operation

Hard facts

• Suitable for aquariums up to 500 liters
• Pump: 1 × Bubble King® 2500 DC (24V)
• Maximum power: 67 Watts
• Base plate: 22 × 28 cm
• Total height: approx. 53 cm

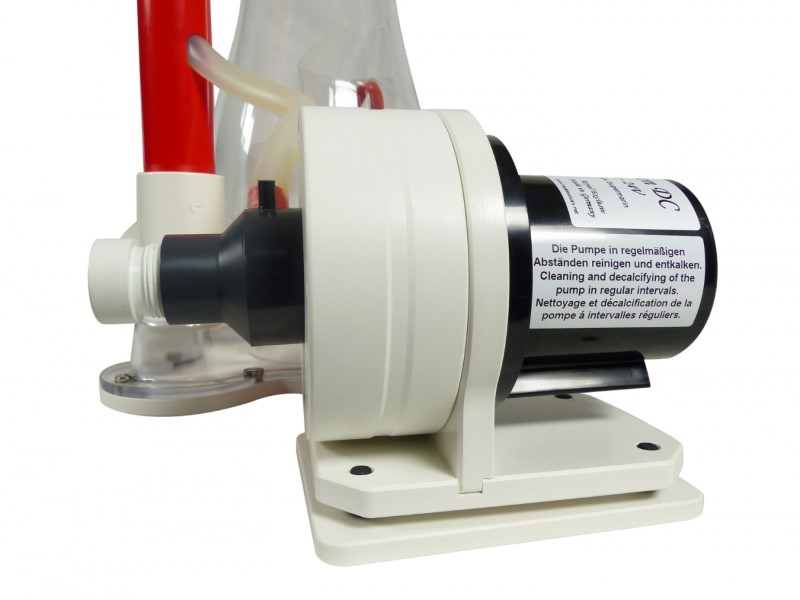

Technical data Red Dragon Bubble King DC pump

• Needle wheel design
• Adjustable DC pump (24V)
• Air intake: max. 2,500 l/h
• Water inlet: approx. 7,500 l/h
• Active power: max. 67 Watts

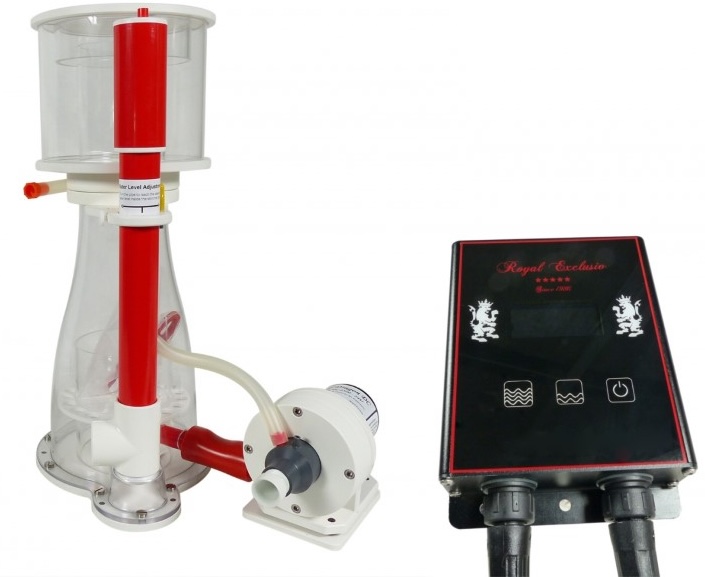

• Detachable controller and power supply
• Operating voltage: 100–240V, 50/60 Hz
• Pump protection class: IP68
• 10V connection (jack plug)

Installation and water level

For optimal operation, a water level between approximately 200 mm and 250 mm is recommended. Ensure the skimmer is positioned freely in the sump compartment and is easily accessible for maintenance.

• Recommended water level: 200–250 mm
• Outlet absorbate: 350 mm

Cables and connections

• Cable length pump → controller: approx. 3 m
• Cable length controller → power supply: approx. 1.5 m

Dimensions and weight

• Weight (incl. pump): 7.5 kg
• Dimensions without pump: 220 mm wide × 280 mm deep × approx. 530 mm high
• Dimensions with pump: 260 mm wide × 400 mm deep × approx. 530 mm high

Summary

The Bubble King® Double Cone 180 BK DC 24V is an excellent choice for those seeking maximum control, high skimming capacity, and reliable Red Dragon DC technology. Thanks to its powerful yet finely adjustable pump, this skimmer is suitable for both lightly and heavily loaded marine aquariums up to 500 liters.
