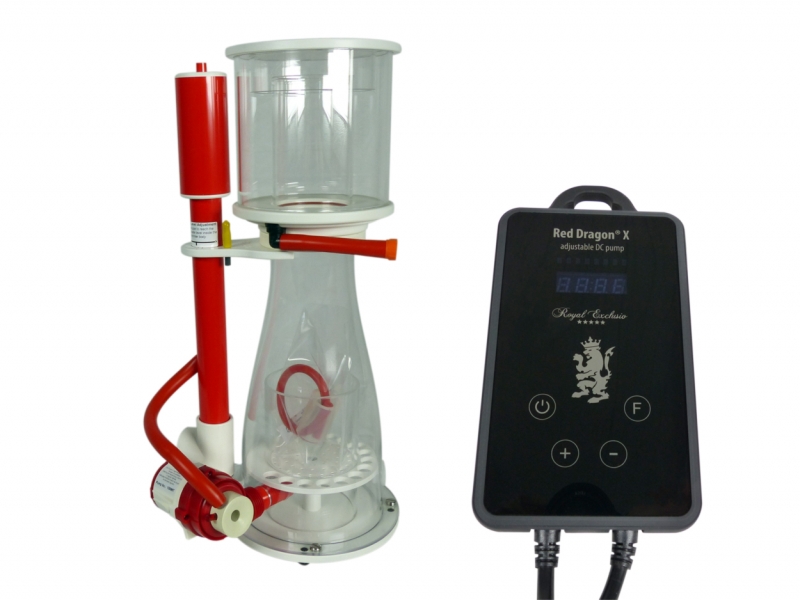

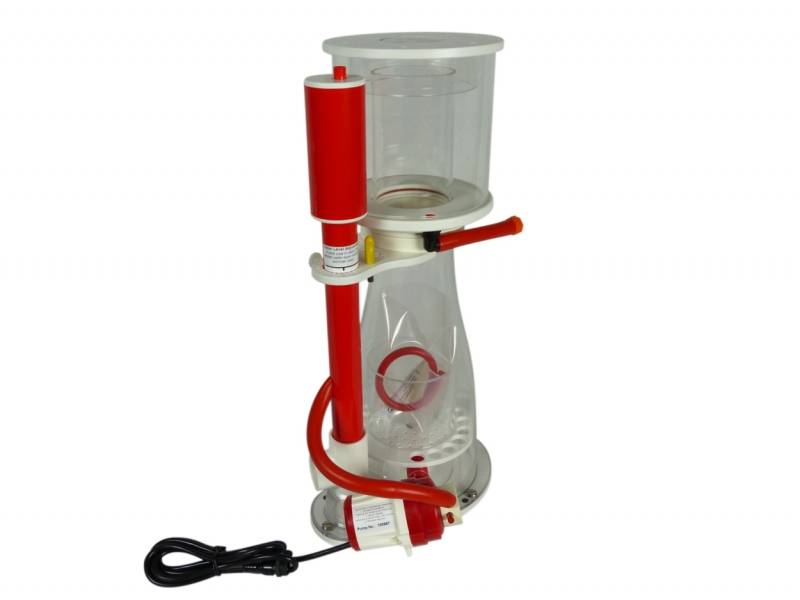

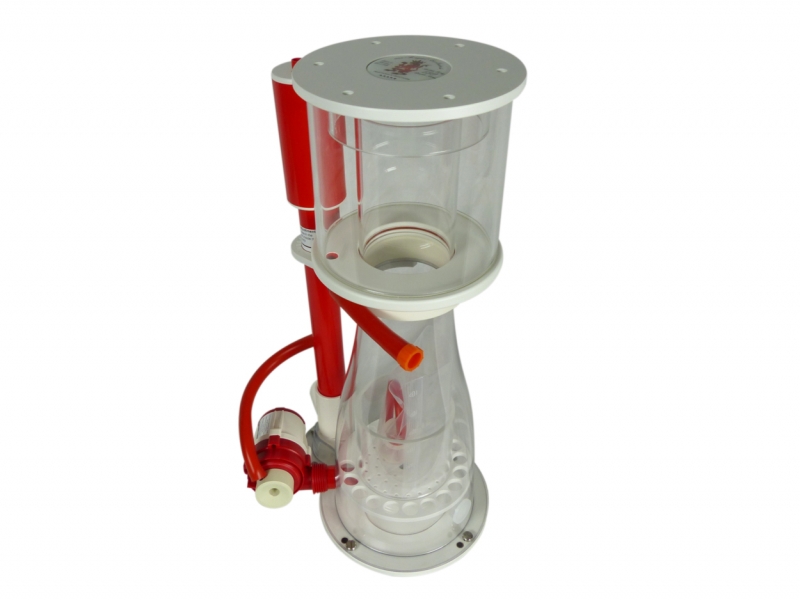

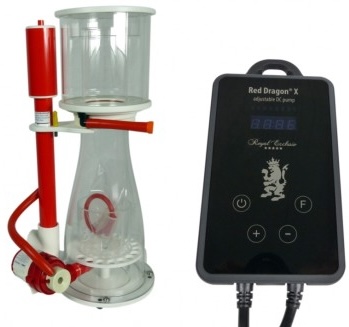

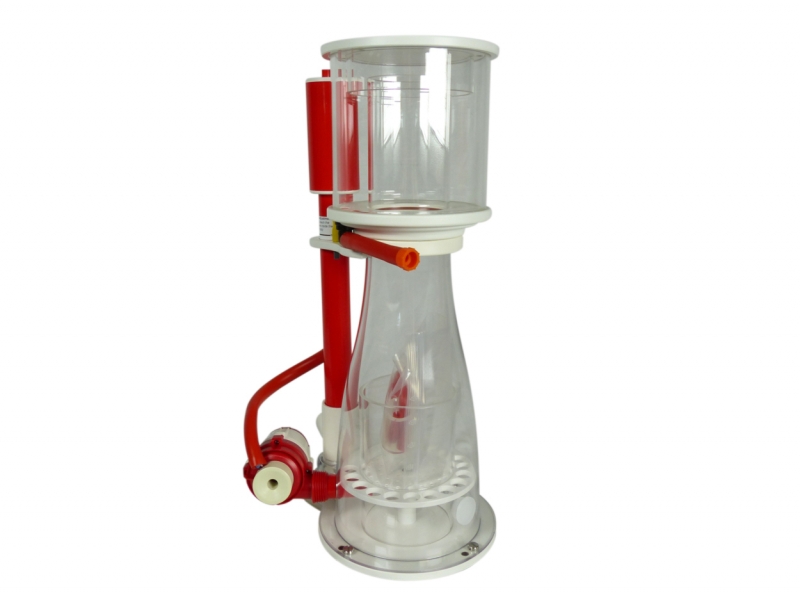

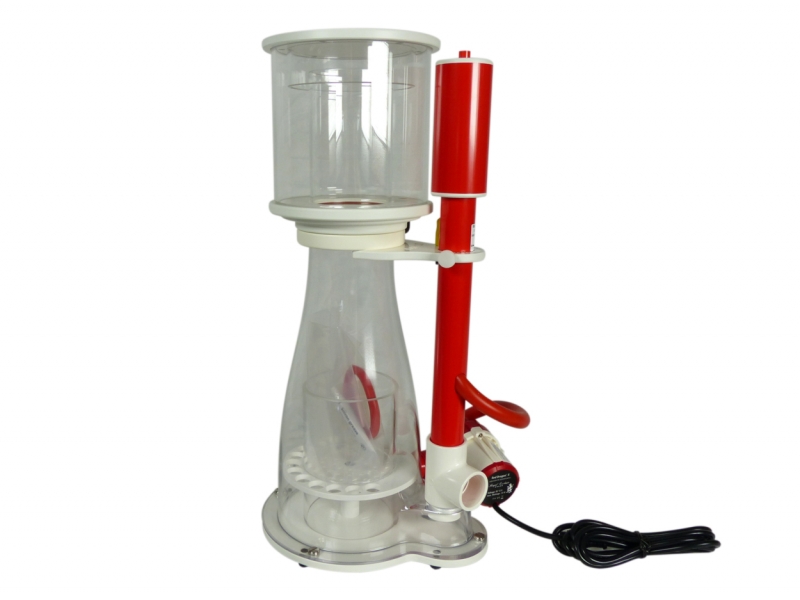

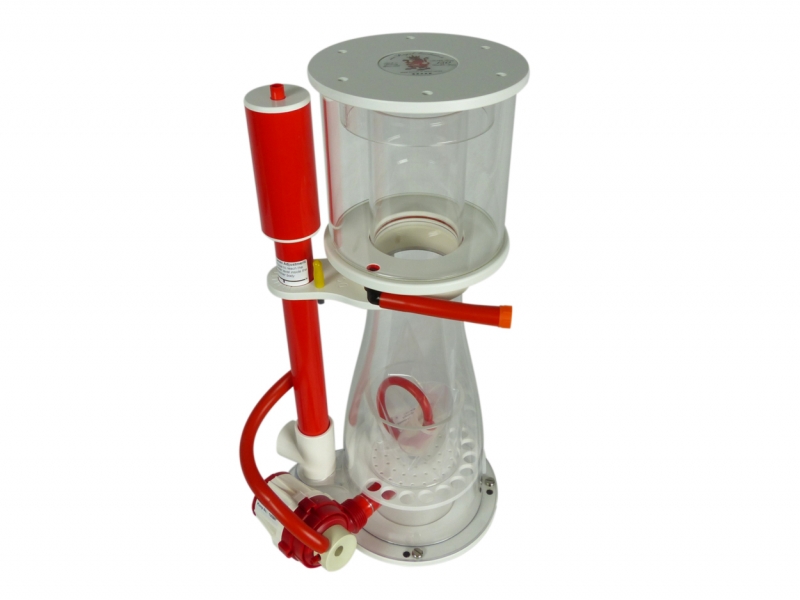

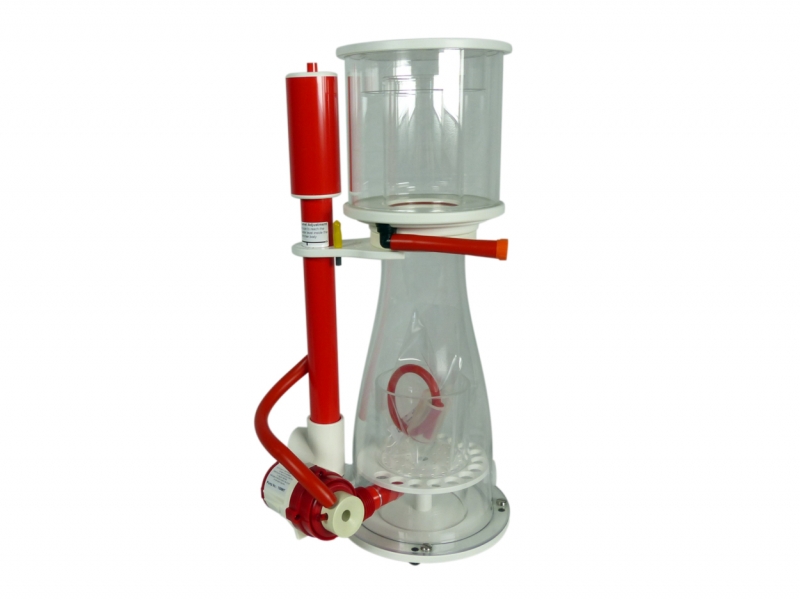

Royal Exclusive Bubble King Double Cone 150 with RDX 12 V

Key data for the Bubble King® Double Cone 150: Max. 750 l/h air - 3,500 l/h water = 1 RD X 3000 DC 12V pump Base plate: 19.5 cm x 24.5 cm / Height ~ 50 cm Water level: ~ 150 mm to ~ 20...

Key data for the Bubble King® Double Cone 150:

• Max. 750 l/h air - 3,500 l/h water = 1 RD X 3000 DC 12V pump
• Base plate: 19.5 cm x 24.5 cm / Height ~ 50 cm
• Water level: ~ 150 mm to ~ 200 mm
• Skimmer weight: 5 kg including pump

Technical data Bubble King® Double Cone 150:

• Skimmer pump: Red Dragon® X 3000 skimmer pump
• Flow rate: 200-750 l/h air inlet ~ 300-3,500 l/h water inlet
• Power consumption: Pmax = 30 watts/h
• Speed-controllable brushless DC pump
• Adjustable in 8 steps from ~ 7-30 W
• Speed - Display
• Operating voltage: 100-240 volts, 50-60 Hz (12 V technology)
• Pump protection class: IP 68, control unit: IP 66
• Pump weight without power supply/controller: 0.6 kg
• Suction side height: 45 mm center

Pump/controller dimensions

• Pump dimensions: 80 mm wide / 130 mm long / ~70 (100 mm at the skimmer) mm high

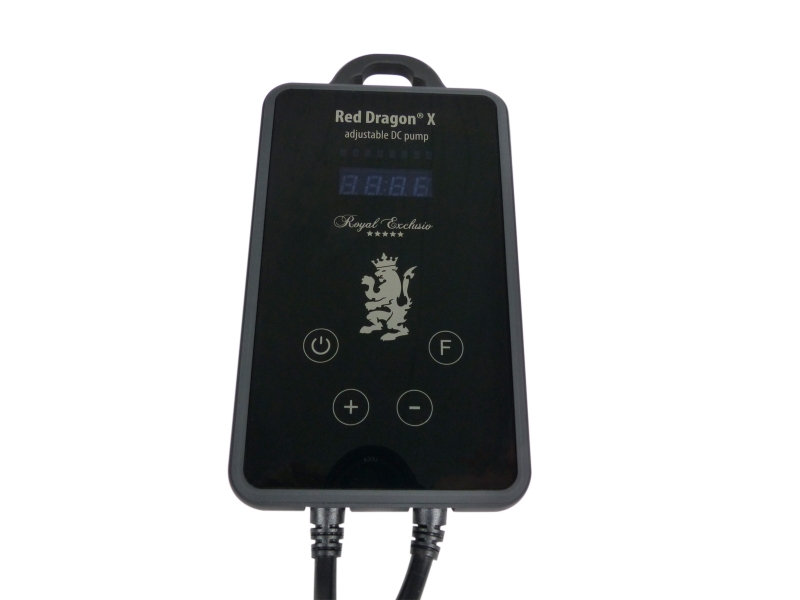

• Control unit dimensions: 20mm wide / 90mm long / ~170mm high

Other features

• Seawater-resistant M4 Grade 2 titanium screws
• Seawater-resistant parabolic rubber feet for acoustic insulation
• Extremely quiet brushless DC power pump with external power electronics
• Highly efficient sinus technology for extremely smooth operation
• Full DIN screw connections on suction and discharge side, compact design
• Extremely easy operation and maintenance, low risk of calcification
• Compact design for protection against vibrations and interference
• CE compliant Developed and built
• High-quality touchscreen display with food timer function
• (Dry-running protection, protection against overheating, overvoltage, blockages, etc.)

Scope of delivery:

• Pump with 2 m power cable
• Controller with 1.5 m power cable
• Power supply with 1.5 m power cable / IEC plug
• Mouthpiece with air and ozone connection
• Instructions for use in German/English

Dimensions of skimmer without pump:

195mm wide / 245mm long / ~505mm high

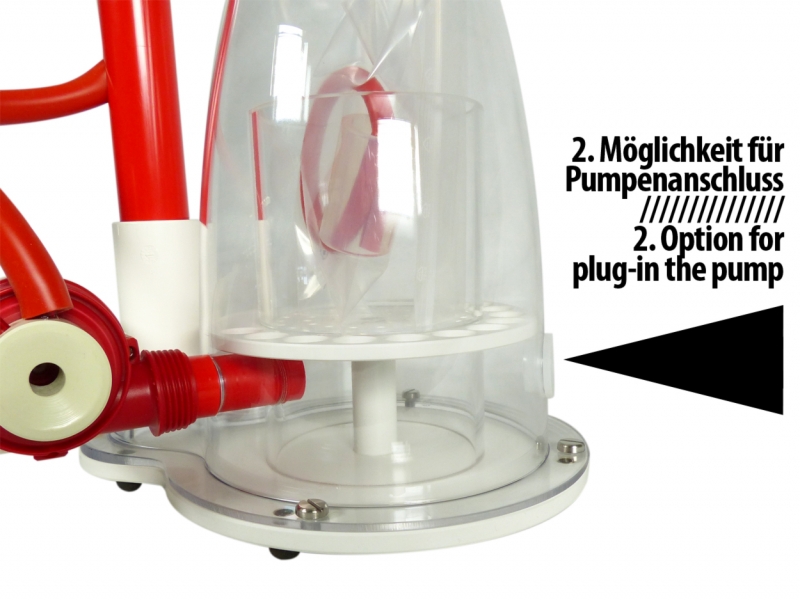

Dimensions of skimmer with pump (90° to the wedge tube):

245mm wide / 260mm long / ~505mm high

Dimensions of skimmer with pump (opposite the wedge tube):

195mm wide / 310mm long / ~505mm high
