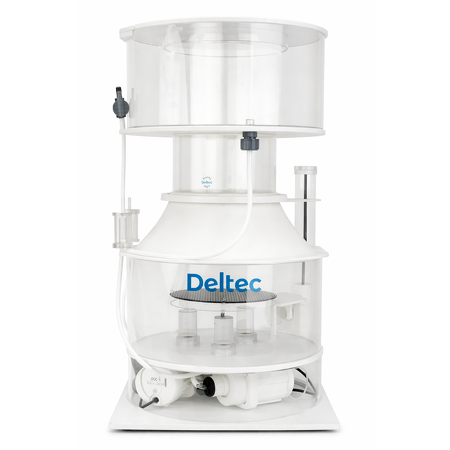

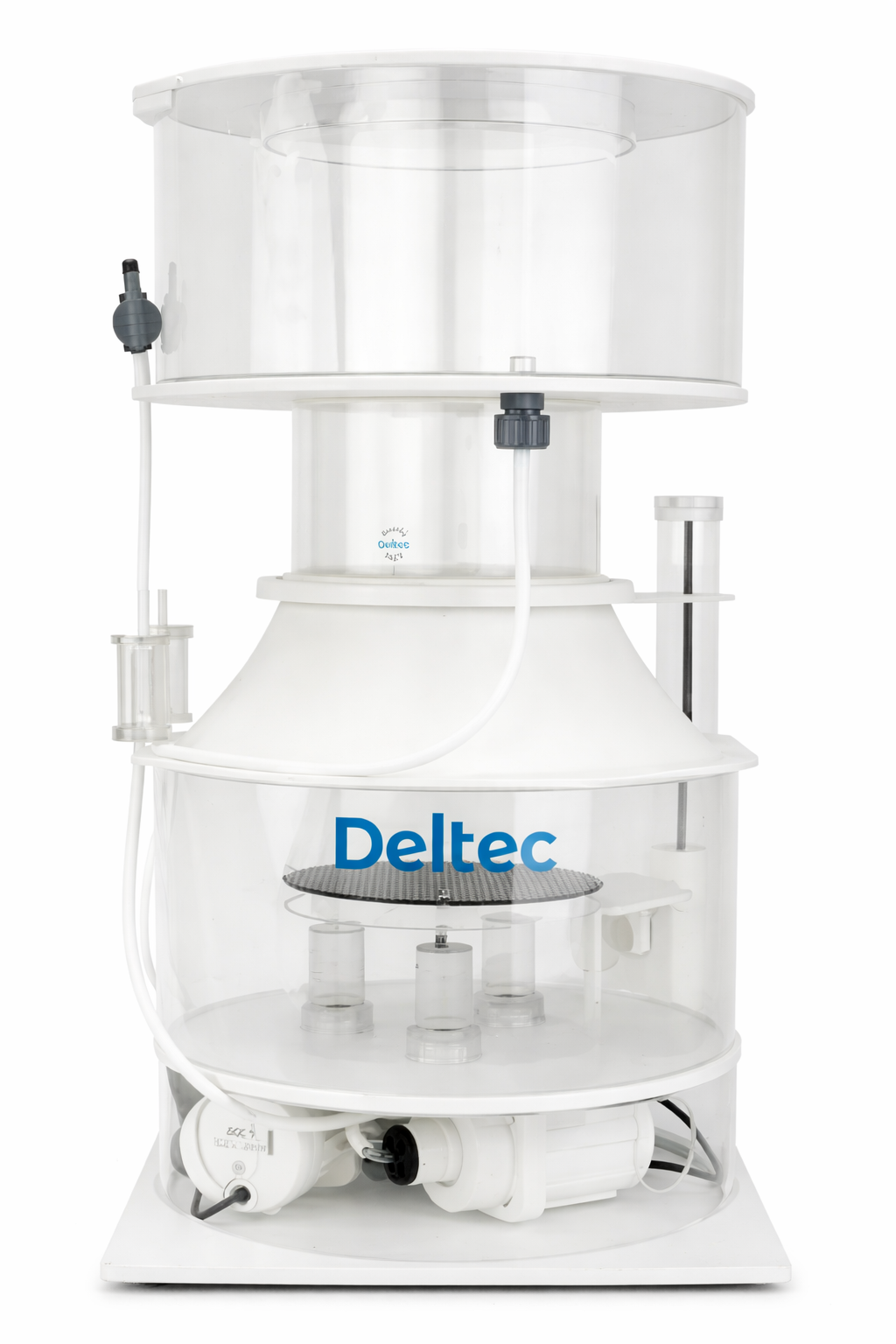

Deltec protein skimmer 9000i with controller

Deltec 9000i – Innovative Internal Protein Skimmer The Deltec 9000i is a new, innovative internal protein skimmer designed for maximum safety, performance, and ease of use in large seawater applications.

Deltec 9000i – Innovative internal protein skimmer

The Deltec 9000i is a new, innovative internal protein skimmer designed for maximum safety, performance, and ease of use in large marine aquariums. This skimmer is part of the Deltec i-series with DC pumps and features an advanced emergency overflow system that effectively prevents overflow of the collection cup.

Advanced emergency overflow system

The Deltec 9000i is equipped with a smart emergency overflow system. If the water level in the sump rises unexpectedly or the air supply becomes blocked, the air supply to the pump is automatically shut off. This immediately stops foam production and prevents the collection cup from overflowing, even if the return pump is defective.

• Automatic shut-off of air supply when the water level is too high
• Prevents the collection cup from overflowing
• Additional safety in case of return pump failures

Simple and precise adjustment

For quick and trouble-free installation, clear minimum and maximum markings are provided on the exhaust pipe. This makes adjusting the skimmer easy and correct, even when first using it.

• Clear minimum and maximum setting markings
• Micro adjustable skimmer setting
• Suitable for varying sump water levels

Double base plate for optimal performance

The innovative double-base footplate design ensures that water drains from the lowest points in the skimmer housing. The water flows first into an internal space in the footplate and then to the level adjustment tube and emergency overflow.

• Water drainage through the lowest point of the skimmer
• Reduced risk of microbubbles
• Longer air-water contact time
• Less turbulence and noise production

Maintenance-friendly design

Because protein skimmer pumps operate in an environment with organic waste and limescale, easy maintenance is essential. The Deltec 9000i features a tool-free quick-release system that allows the pump to be removed in seconds.

• Tool-free pump removal
• Pump can be removed in less than 20 seconds
• Faster maintenance, less downtime

Technical data – Deltec 9000i (In-sump)

• Total height: approx. 780 mm (incl. approx. 20 mm for cup removal)
• Footprint: 420 × 520 mm
• Total air production: 3 × 1,900 l/h
• Power consumption: 3 × 38 Watts
• Recommended sump water level: 150 – 250 mm
• Neck diameter: 220 mm
• Body diameter: 400 mm

Capacity and suitability

• Up to 6,000 liters for heavy occupancy
• Up to 9,000 liters with normal occupancy
• No separate booster pump required
• Takes water directly from the sump

Execution and equipment

• 3 × DC pump DCC5 (24 Volt)
• Air silencer
• Drain for external cup drain
• High water flow through the skimmer

Product information

• Item number: 81410000
• Design: In-sump protein skimmer

Summary

The Deltec 9000i is a powerful, safe, and low-maintenance protein skimmer for very large marine aquariums. Thanks to its emergency overflow system, innovative baseplate design, and powerful DC pumps, this skimmer delivers top performance with minimal risk of malfunctions, microbubbles, and noise. A professional solution for demanding aquarists and large reef systems.
