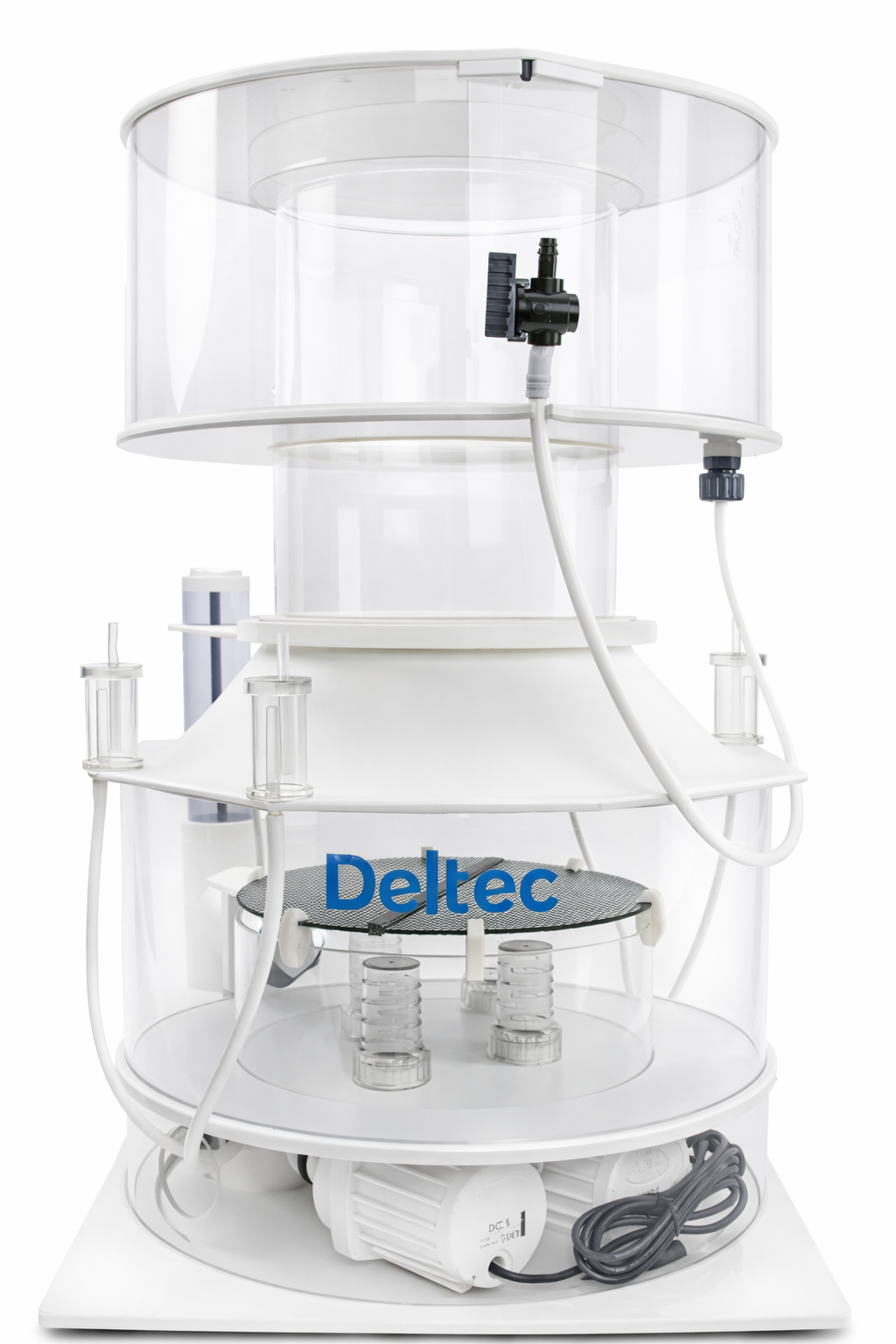

Deltec protein skimmer 12000i with controller

Deltec 12000i – Innovative internal protein skimmer for large systems The Deltec 12000i is a new, innovative internal protein skimmer from the Deltec i-series, specially developed for very large...

Deltec 12000i – Innovative internal protein skimmer for large systems

The Deltec 12000i is a new, innovative internal protein skimmer from the Deltec i-series, specifically designed for very large marine aquariums and professional reef systems. This skimmer combines maximum skimming capacity with advanced safety features and a maintenance-friendly design.

Advanced emergency overflow system

The Deltec i- and ix-series protein skimmers are equipped with a new emergency overflow system. This system prevents the collection cup from overflowing when the sump water level suddenly becomes too high or when the air inlet becomes blocked.

When the water level in the skimmer housing rises, the air supply to the pump is automatically shut off via the emergency overflow. This immediately stops foam formation and significantly reduces the risk of the cup overflowing, for example, if the return pump fails.

• Automatic shut-off of the air supply when the water level is too high
• Additional protection against foam overflow
• Increased operational reliability in the event of sump failures

Easy adjustment

For quick and trouble-free installation, the Deltec 12000i features clear minimum and maximum markings on the outlet pipe. This makes setting the correct water level easy and accurate.

• Clear min/max setting markings
• Micro adjustable skimmer setting
• Suitable for varying sump water levels

Innovative double base footplate design

The unique double-base footplate design ensures that water drains from the skimmer housing at the lowest possible points. The water flows first into an internal space in the footplate and then to the level adjustment tube and the emergency overflow.

• Water drainage through the lowest point of the skimmer
• Significantly reduced risk of microbubbles
• Longer air-water contact time
• Less turbulence and noise production

Easy to maintain and quick to clean

Due to the buildup of waste and limescale, protein skimmer pumps operate under harsh conditions, making periodic maintenance essential. Therefore, Deltec has integrated a tool-free quick-release system, making the pumps very easy to remove.

• Tool-less pump removal
• Pump can be removed in less than 20 seconds
• Less maintenance time, more viewing pleasure

Technical data – Deltec 12000i (In-sump)

• Total height: approx. 780 mm (incl. approx. 20 mm for cup removal)
• Footprint: 480 × 580 mm
• Total air production: 4 × 1,900 l/h
• Power consumption: 4 × 38 Watts
• Recommended sump water level: 150 – 250 mm
• Neck diameter: 250 mm
• Body diameter: 457 mm

Capacity and suitability

• Up to 9,000 liters for heavy occupancy
• Up to 12,000 liters with normal occupancy
• No separate booster pump required
• Skimmer takes water directly from the sump

Execution and equipment

• 4 × DC pump DCC5 (24 Volt)
• Air silencer
• Drain for external cup drain
• Very high water flow through the skimmer

Product information

• Item number: 81460000
• Design: Internal (in-sump) protein skimmer

Summary

The Deltec 12000i is a powerful, safe, and highly professional protein skimmer for very large marine aquariums and reef systems. Thanks to its innovative emergency overflow system, advanced baseplate design, and four powerful DC pumps, this skimmer offers maximum performance with minimal risk of malfunctions, microbubbles, and noise.
