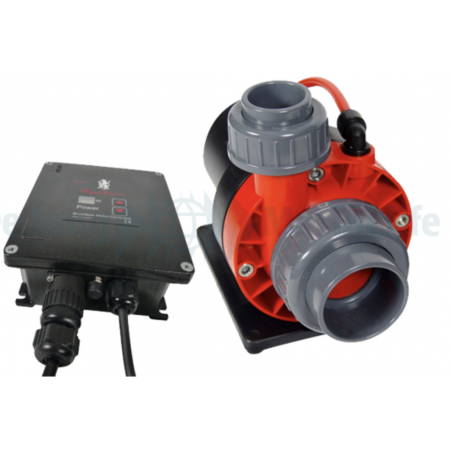

Red Dragon® 3 Speedy pump HIGH PRESSURE 100 Watt / 9.0m³ AKB anti-limescale bypass with Hirschmann plug connection between pump and controller
and with 10V Interface connection (prepared)

Technical data Red Dragon® 3 Speedy pump 100 Watt 9.0 m³:

• 100 Watt/h 6.0 mtr. pressure height
• speed controllable brushless DC pump
• Watt display on the controller /// adjustable in steps of 2 Watt
• suction side 50 mm - discharge side 32 mm
• operating voltage: 230 Volt 50 Hz (also available in 110V/60Hz)
• Pump protection class: IP 68 Control unit: IP 66
• Pump weight: 3.6 kg
• Weight controller: 1.1kg
• Suction side height: center 70 mm
• Pump size: 130mm wide / 235mm length / ~190mm height
• Control unit size: 140mm wide / 190mm length / ~70mm height
• Salt water resistant M6 grade 2 titanium screws
• Salt water resistant parabolic rubber feet for acoustic decoupling
• Extremely low-noise brushless DC pump with encapsulated power electronics
• Highly efficient technology "Made in Germany"
• Inlet and outlet complete with DIN connection, compact dimensions
• High-quality ceramic bearings and hollow shaft for bypass flushing in the rotor housing
• Only salt water resistant pump with titanium rotor, titanium stator and shrunken bearings
• Easy use and maintenance. Low risk of calcification due to polished titanium parts and mandatory rinsing
• Heavy and solid workmanship against vibrations and vibrations
• CE compliant, developed and built according to VDE guidelines
