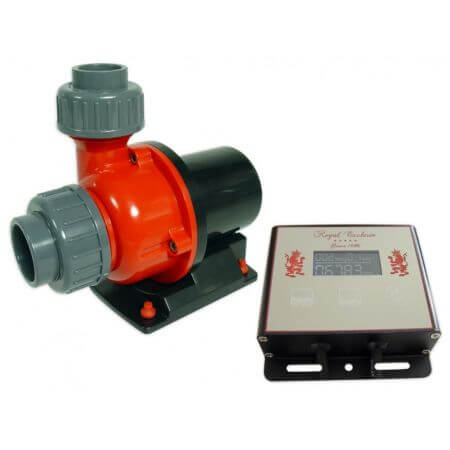

Red Dragon 5 Eco pump

Red Dragon 5 Eco pump - 4000 liters per hour - 25watt - 2.5 meter boost - 24v - Adjustable ...

Red Dragon 5 Eco pump

Red Dragon 5 Eco pump - 4000L - 25w - 2.5 m. Delivery - 24v - adjustable

Technical data Red Dragon ® 5 ECO pump 25 Watt 4.0 m³:

• 25 Watt / h 2.5 m. head height
• speed-adjustable Brushless DC pump
• Display: Watts, energy consumption and revolution per minute (rpm)
• inlet side 32 mm (1 ") - pressure side 25 mm (0.75 inch)
• Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
• Protection class pump: IP 68 control unit: IP 66
• Pump weight without controller: 1.0 kg
• Height of the inlet side: center 60 mm
• Dimension pump: 100 mm wide / 170 mm length / ~ 155 mm height
• Dimension control: 30 mm wide / 95 mm length / ~ 105 mm height
• Saltwater resistant M5 class 2 titanium screws
• Saltwater-resistant parabolic rubber feet for noise reduction
• Extremely quiet brushless DC delivery pump with external power supply
• High efficient technology, Sine Wave for very quiet running of the pump
• Inlet and Outlet complete with DIN connection, compact dimensions
• Easy use and maintenance, low risk of calcification
• Heavy and solid design against vibration and oscillation
• CE conformity, developed and built
• Quality power supply from "Mean Well"
• high quality touchscreen display with many extra functions
  (protection against dry running, overheating, over voltage, blocking etc.)
• 10 V connection / control with 3.5 mm TS connection (headphone connection)
