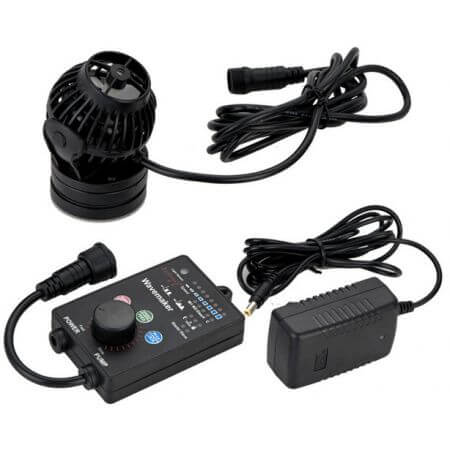

Jecod SOW8 + controller (Flow pump / wavemaker)

The Jecod SOW8 flow pump / wavemaker has a maximum flow rate of 8500 liters per hour. The new Wave Makers are characterized by the fact that the electronic control is now completely in control ...

Jecod SOW8 + controller (Flow pump / wavemaker)

Jecod Sinus Wave wave maker pumps.

Conventional alternating current power is produced by rotating machines (alternators) that produce a smooth alternation, such as that of a pendulum. It is mathematically described as a "sine wave". It is the ideal waveform for transferring alternating current.

When converting alternating current to direct current, most direct current control units will convert the alternating voltage to a direct current square wave or direct current modified square wave. For the most part, a DC-modified square wave often emulates a True Sine wave reasonably well, but the driven pump will often work with audible levels of noise and a somewhat "jerky" effect due to the stepped rectangular waveform compared to a smooth True Sine Wave.

Using the True Sine Wave technology, the new SOW sine wave pumps result in quiet and smooth operation that extends the life of the flow pump / wavemaker.

Features Jecod SOW flow pump / wavemaker

• 8 different flow rates
• 4 wave modes
• Very quiet operation thanks to Sine Wave technology
• Wireless controller - if 2 SOW pumps are used, controllers can "synchronize" wirelessly so that the SW pumps can work "synchronously" or "synchronously".
• Easy installation and maintenance.
• Magnetic bracket that allows a higher degree of pump rotation compared to SW pumps.
• Night sensor - automatically detects when the tank lights go out and the pump slows down.
• One-touch input mode - slows the pump for a 10-minute period.
• Powerful, powerful water flow combined with low energy consumption.
• Ceramic shaft for a long service life and durability
• Intelligent control system to generate different wave patterns that suit your tank.
• Extra long cable for easy and comfortable installation, even on larger tanks.
• Low voltage, safe, reliable power supply.
• Suitable for aquariums with glass up to 15 mm thick. (20 mm for SOW 20)

Specifications for different Jecod SOW flow pump / wavemaker versions

• SOW-4: flow rate adjustable from 500 - 4,000 liters / hour - 15W
• SOW-8: flow rate adjustable from 500 - 8,500 liters / hour - 23W
• SOW-15: flow rate adjustable from 500 - 15,000 liters / hour - 35W
• SOW-20: Flow rate adjustable from 700 - 20,000 liters / hour - 50W

Pump dimensions

• Jecod SOW-4: 4,000 l / h, 52 x 72 mm
• Jecod SOW-8: 8,500 l / h, 66 x 88 mm
• Jecod SOW-15: 15,000 l / h, 80 x 106 mm
• Jecod SOW-20: 20,000 l / h, 94 x 120 mm

EU hologram on the box

All our Jecod products are equipped with an EU hologram (see image) which guarantees a Jecod product that is produced for the European market.

Video Jecod SOW8 + controller (Flow pump / wavemaker)
