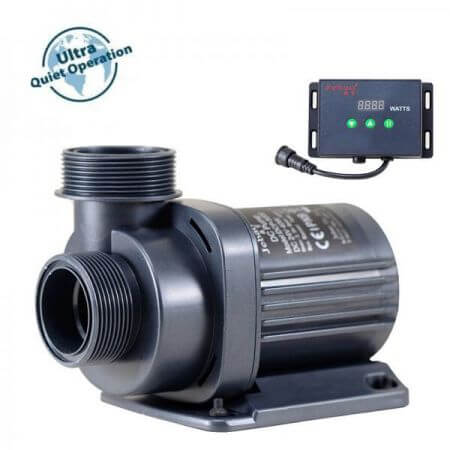

Jebao boost pump DCP5000 - incl. Controller

Jebao pump DCP5000 - incl. Controller - 5000ltr - 40w - op. max 3.5 m. The DCP series is the latest series from Jecod / Jebao. These pumps not only look better than the earlier series, but ...

Jebao boost pump DCP5000 - incl. Controller

The DCP series is the latest series from Jecod / Jebao (New Jebao 2016 Design). These pumps not only look better than the previous series, but are still and more economical. Moreover, they can be adjusted many times more precisely due to the many controllable stages.

SINE wave technology, ultra quiet operation; IC Electronic detection allowing automatic shutdown at no water. Hard-wearing ceramic shaft.

Characteristics

• SINE wave technology, ultra quiet operation
• Has standard US fittings for hard piping
• Energy saving up to 65%
• IC Electronic detection allowing automatic shutdown in case of no water
• Hard-wearing ceramic shaft
• Adjustable speed controller Included

Properties

• Controllable 70 stages (F030 - F100)
• Soft start
• Extremely quiet
• Max Flow rate: 5000 L / H
• Max Delivery height 3.5 m
• Nominal power: 40 watts (24V) at the highest level,
• The actual energy consumption depends on the setting
• Suitable for fresh and sea water
• Enter Pause button (10 minutes) with Soft-Restart and Restart
• Keystroke control is "lockable" eg Parental control
• (press the feeding button breaks)
• Automatic dimming display (25 seconds after the last press of the button, the brightness of the display is automatically greatly reduced)
• Hose connector for 25, 32 40 mm PVC pipe
• Hose connector on the suction side: 25, 32 and 40 mm
• Dimensions: Length 158 mm x Width 80 mm x Height 128 mm

All Jecod DCP models

Dimensions table

English description

Features

• New Digital Controller - Speed Control Settings Between 30-100
• Adjustable Flow Between 1004GPH to 2113GPH
• New Jebao 2016 Design
• Seals for input and output connections
• Improved Head Pressure Performance on DCT Model Such As DCT6000DCT8000
• New Enclosed Impeller Design For a more Quiet Operation
• Energy saving up to 65%
• IC Electronic Detection - Automatic Power Off Protection Upon No Water
• Wear Resistant Ceramic Shaft
• Adjustable Speed Controller Included


Specifications

• 40 watts
• 3.5M

What's in the box

• Jebao DCP-5000 Pump
• Power Supply
• Controller
• 6 Connectors 2 x 3 / 4in, 2 x 1in, 2 x 1 1 / 4in
