GHL Doser 3 Maxi EXT IL (9HU)
GHL Doser 3 Maxi EXT IL (9HU) The GHL Doser 3 Maxi EXT IL is a professional dosing unit from the Industrial Line series, designed for use in technical installations and larger aquarium systems. The...
GHL Doser 3 Maxi EXT IL (9HU)

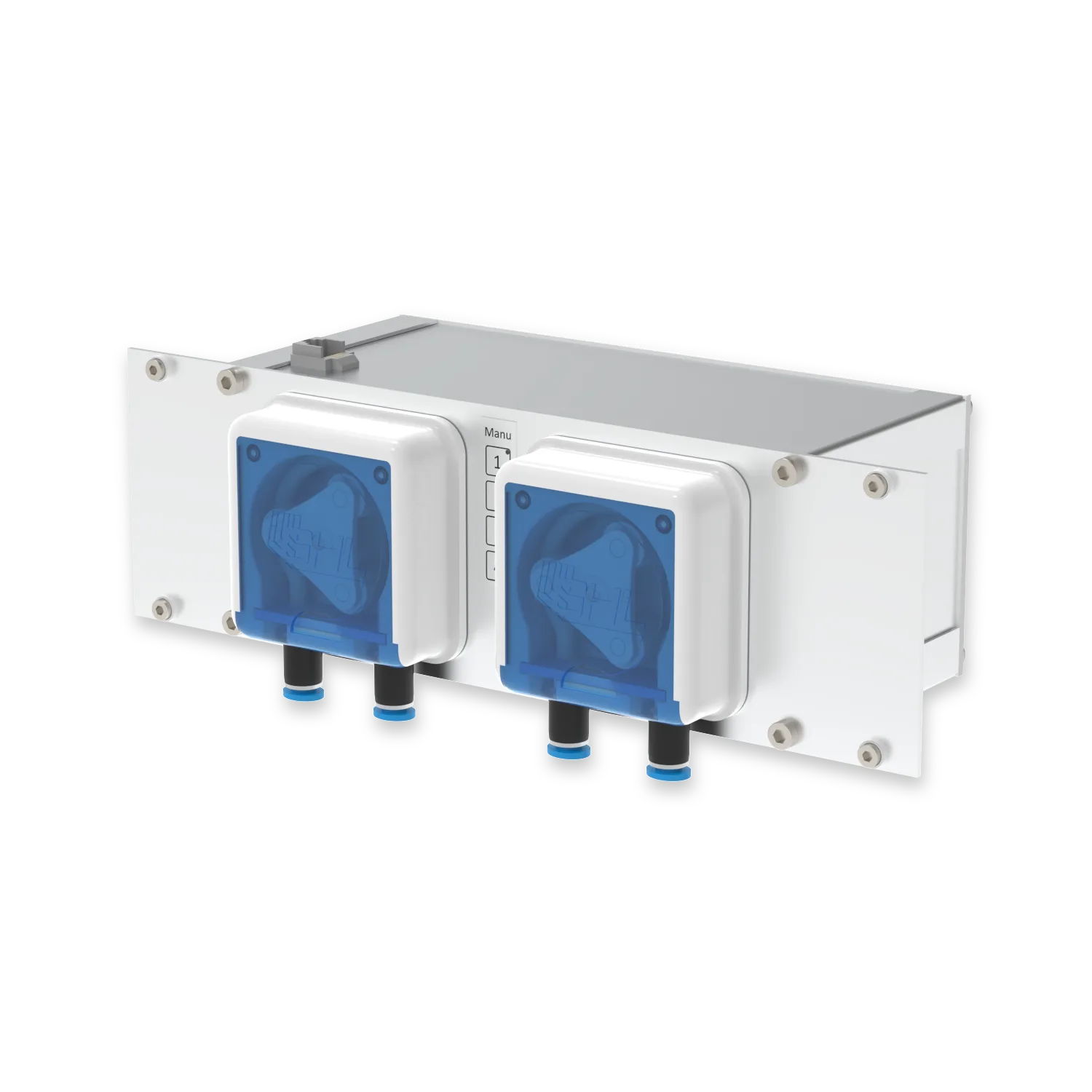

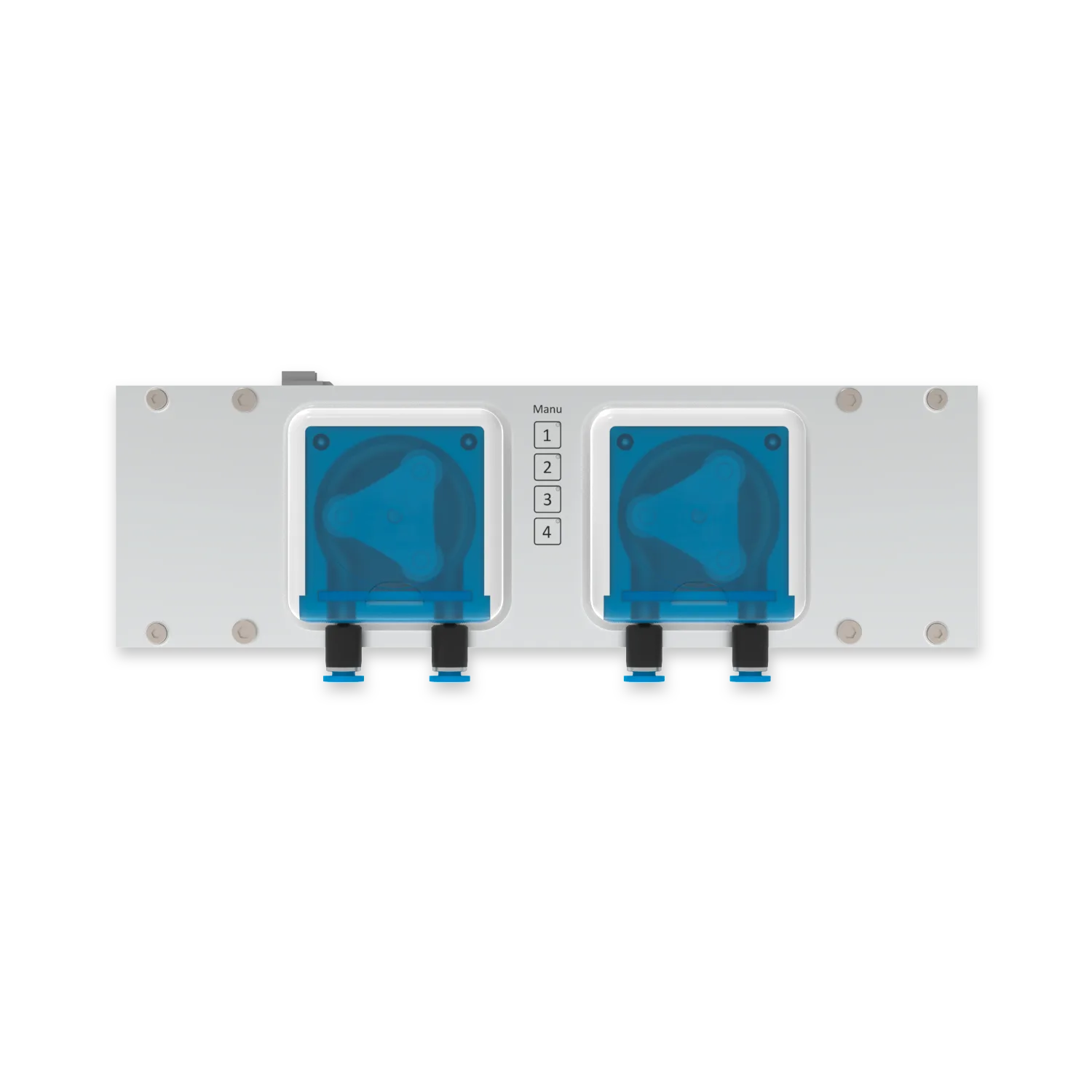

The GHL Doser 3 Maxi EXT IL is a professional dosing unit from the Industrial Line series, designed for use in technical installations and larger aquarium systems. This version is an extension unit and is controlled via an external controller such as a GHL Doser or ProfiLux.
The unit is built into a 9HU aluminium slide-in enclosure , suitable for mounting in an IP54 Industrial Line cabinet or a custom installation.
Professional performance
- 2 powerful peristaltic pumps
- Flow rate up to approx. 350 ml/min per pump
- Accuracy from 0.1 ml
- Up to 250 automatic doses per day per pump
SilentDrive technology
The pumps are equipped with SilentDrive technology , a combination of advanced control and 24V stepper motors. This ensures powerful yet very quiet operation, ideal for professional and sensitive environments.
Flexible management
The Doser 3 Maxi EXT IL does not have its own controller and is controlled via the PAB (ProfiLux Aquatic Bus) .
Compatible with, among others:
- GHL Doser 3 Maxi SA IL
- GHL Doser SA IL
- GHL ProfiLux (IL, ProfiLux 4, ProfiLux 4e)
Expandable system
- Up to 16 pumps per SA host
- Up to 32 pumps in combination with a ProfiLux controller
- Fully compatible with previous GHL Doser generations
Possible uses
- Automatic dosing of supplements
- Reactor control (continuous mode)
- Complex dosing schedules with up to 24 adjustable times
Installation and design
- 9HU aluminum Industrial Line enclosure
- Suitable for rack and cabinet mounting
- Optional RGB front panel for status indication
Important
- Works only in combination with a GHL controller (not a standalone unit)
- Power supply (24V) not included
Features
- 2 high-flow dosing pumps
- Very accurate dosing from 0.1 ml
- Silent and powerful operation
- Professional Industrial Line version
The GHL Doser 3 Maxi EXT IL is the ideal choice for advanced and professional aquarium systems where reliability, scalability, and precision are paramount.
