EasyRefill - Smart refill system with an optical sensor

The AquaLight easyRefill system provides a very reliable way to check and refill the evaporated water in the aquarium. The unique optical sensor switches the water pump with high precision and thus keeps the water level at an optimal level.

The new SSF (Smart Security Feedback) technology prevents the system from failing in real time and thus ensures safety in the aquarium. The system triggers an alarm when the interval between two refills is more than 2 times longer than for the last refill.

The easyRefill is very easy to install and looks good in the aquarium, as no cables are laid in the aquarium. The controller works on 12V DC.

Optionally, an extension cable is available for connection between pump and controller. Standard length is 2 meters.

Technical specifications

• Power supply input: 100-240VAC / 50-60HZ
• Output: DC 12V
• DC pump
  • Max. discharge head: 200 cm
  • Flow rate: 280 l / h

Aquarium / Sump

• Max. Glass thickness for magnet: 12.7 mm
• Max. Distance to the sensor: 25.4 mm

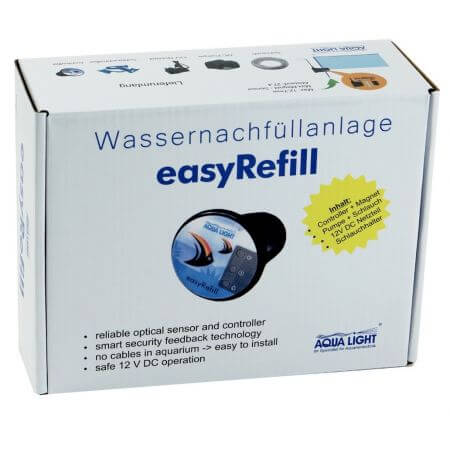

Scope of supply

• 1 x smart controller
• 1 x power supply
• 1 x pump
• 1 x water hose approx. 2 m long
• 1 x universal hose holder
