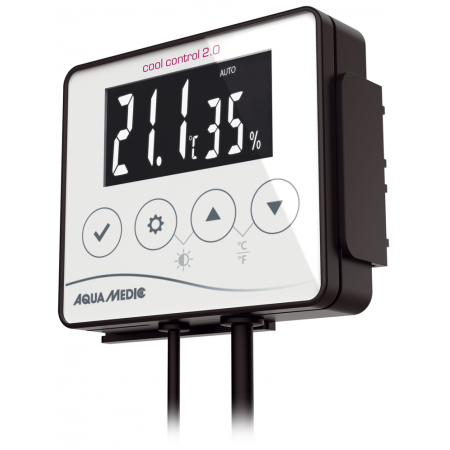

Aqua Medic Cool control 2.0

Digital temperature monitor and controller, for controlling and monitoring fans The Cool Control 2.0 temperature controller with touchscreen display is used for controlling 12 or 24 volt...

Digital temperature monitor and controller, for controlling and monitoring fans

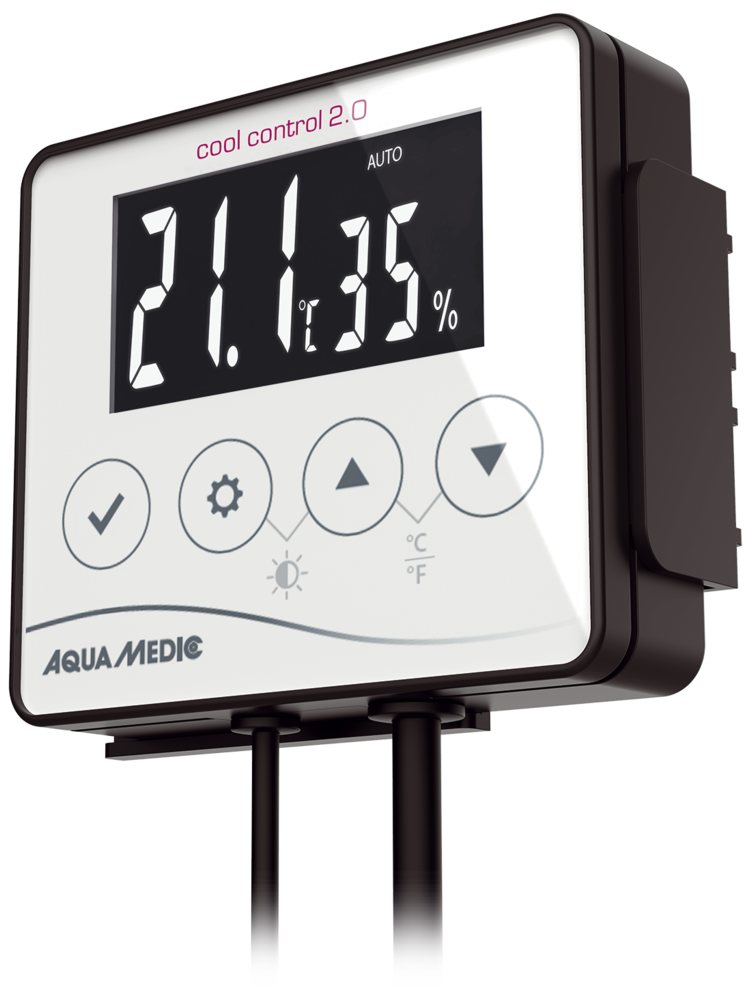

The Cool Control 2.0 temperature controller with touchscreen display is used to control 12 or 24 volt fans with coaxial connections (5.5 mm x 2.1 mm). The switching accuracy is adjustable from 0.1 to 1.5 °C. The control range is from 16 to 40 °C and the setpoint is in 0.1 °C increments. The Cool Control 2.0 is supplied with a waterproof temperature sensor. The LCD display provides direct information about the current temperature and the fan output (30 to 99%). The set temperature can also be displayed and, like the fan output, easily adjusted.

• Maximum switching power: 65 W
• Dimensions: LxWxH approx. 93 x 80 x 25 mm
• Temperature sensor cable length: approx. 1750 mm

High and reliable switching accuracy

• Improved display

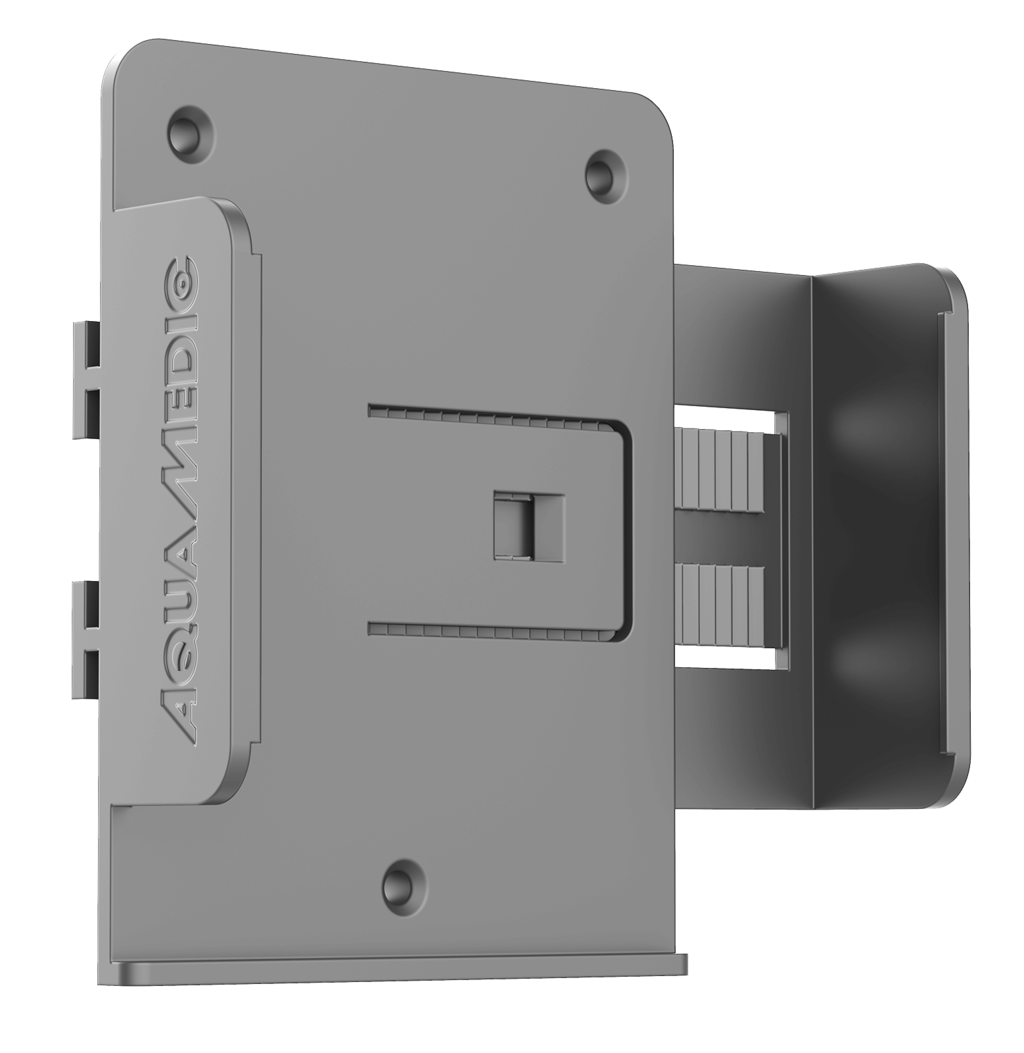

• Wall mounting included
• Adjustable switching accuracy
• Easy operation
