Abyzz A100 booster pump

Abyzz A100 pumps offer near-silent operation, incredible performance and extremely low operating costs and are suitable for larger marine or freshwater aquariums, pond filter systems and koi ponds...

Abyzz A100 pumps offer near-silent operation, incredible performance and extremely low operating costs and are suitable for larger marine or freshwater aquariums, pond filter systems and koi ponds.

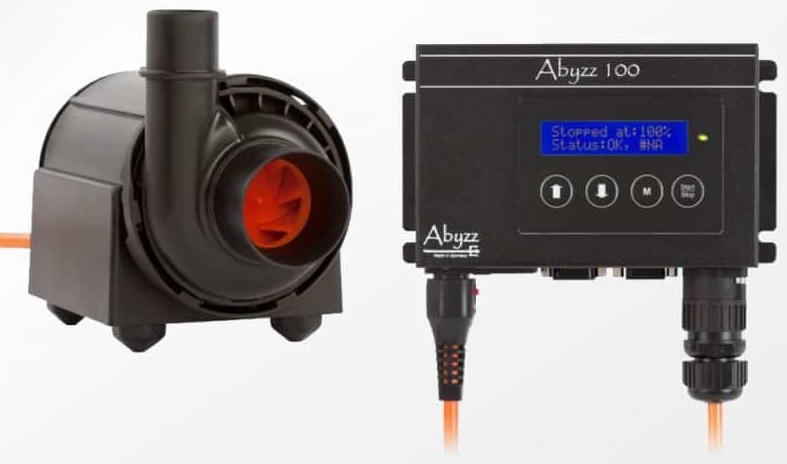

The Abyzz A100 pump with its titanium impeller consists of a programmable menu-driven driver and a sinusoidal, three-phase synchronous motor. The efficiency factor of the motor is over 90%, which, together with the fact that you can adjust the speed to your performance requirements, makes it an energy-saving solution.

The integrated bearing flushing system offers optimum protection against calcification and, in combination with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operation. The materials used are designed for a long service life and meet the highest requirements and quality standards. Developed and produced in Germany.

Product details

• Variable speed range (0 - 100%).
• Programmable control system (e.g. wave and random modes).
• Safety functions (e.g. dry-run, temperature and overcurrent protection).
• Soft start.
• Bus interface for peripheral devices.
• Low-noise operation.
• Cable length of 3 m.
• Can be used submerged or in a dry position, but is not self-priming.

Technical details

• Maximum flow rate: 8,500 l/h
• Nominal flow rate: 7,500 l/h
• Head height: max. 6.0 m
• Nominal input: 54...100 W
• Operating voltage: 230 V~, 50...60 Hz
• Ambient temperature: +2 ºC...+40 ºC
• Maximum operating pressure: 1.2 bar
• Maximum immersion depth: 2 meters
• Inlet/outlet connections: 40mm/25mm
