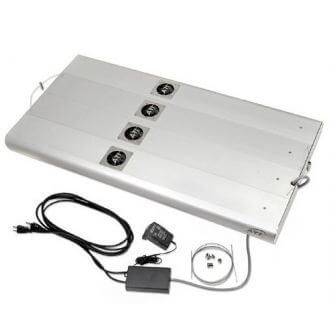

ATI Power module DIM 10x24 watt

With the ATI power module, ATI offers a T5 fixture with performance. Made from high-quality materials, combined in a noble design, the Power Module is an absolute highlight. Special reflector ...

A favorite among hobbyists who want top-of-the-line performance at a low cost.
The ATI PowerModule has Miro-Silver reflectors and an active cooling system for optimum performance and a long service life of the lamps. The curved aluminum housing is both stylish and economical.

Unrivaled performance

Superior design and high-end components produce 50% more light than most equally large T5 luminaires. An active cooling system allows the lamps to be used at a more optimal temperature, which improves both the output and the life of the lamp.

Contemporary design

The slim, silver-colored body is lightweight, durable and rust-proof. All components, including the T5 ballasts, are enclosed in the housing of the fixture. The only things outside the fixture are a small junction box, two power cords, and an AC / DC adapter for turning the fans.

Independent Lamp Control

Wired with two lamps per power cable, provides independent control and day / night twilight simulation.

Energy efficient

Produces up to 50% more light than most other, even-sized T5 fixtures, without using more energy.

Calm, Cool Operation

Very economical high-quality ventilation produces virtually no noise.

ATI Power module

  • Individual Parabolic style Reflectors made of silver-coated 98% Reflective
  • Aluminum
  • Active Cooling System
  • Built-in electronic ballast
  • acrylic Shield
  • 3 meter Power Cords (x2)
  • Slim, Adjustable 'Griplock' Style Hanging Kit

With the ATI power module, ATI offers a T5 fixture with performance. Made from high-quality materials, combined in a noble design, the Power Module is an absolute highlight. Special reflector material in combination with active cooling provide unrivaled performance, allowing T5 fluorescent lamps to work at their optimum temperature range.

Elegant design combined with absolute power - with the ATI Power Module you get everything in a beautiful package. All components such as electronic ballasts, best reflector material and others are all from well-known brand manufacturers.

The benefits at a glance

  • Timeless design in an anodized aluminum housing
  • High-tech reflectors
  • Long service life through active cooling
  • One fan per pair of tubes
  • Full-surface splash guard to protect tubes and reflectors
  • High-quality electronic ballasts
  • Also available in dimmable versions (1-10V)
  • You can use the power module in 4, 6, 8 or 10 lamps available in 24W, 39W, 54W or 80W. All fixtures in this family are equipped with 2 leads. In the 4-burner there is a 2/2 split crosswise. In the 6-burner, there is a 2/4, with the 8-burner, a 2/6 and the 10-burner, a 2/8 split.

Technical information:

  • 10x24 watt
  • 572x558x60mm
  • With built-in dim computer
  • Lamps available separately

ATI Power module DIM 10x24 watt
ATI Power module DIM 10x24 watt

Dimensions

Wattage Dimensions
L x W x H in mm
Weight in gr. Usual dimensions of aquatium
4x24w 96 572x240x60 4800 50x90
4x39w 156 872x240x60 6400 50x120
4x54w 216 1173x240x60 8000 50x150
4x80w 320 1473x240x60 9600 50x180
6x24w 144 572x346x60 6400 60x90
6x39w 234 872x346x60 9150 60x120
6x54w 324 1173x346x60 10700 60x150
6x80w 480 1473x346x60 13500 60x180
8x24w 192 572x452x60 8700 70x90
8x39w 312 872x452x60 12600 70x120
8x54w 432 1173x452x60 15200 70x150
8x80w 640 1473x452x60 18300 70x180
10x24w 240 572x452x60 10850 80x90
10x39w 390 872x452x60 14600 80x120
10x54w 540 1173x452x60 18200 80x150
10x80w 800 1473x452x60 22300 80x180
